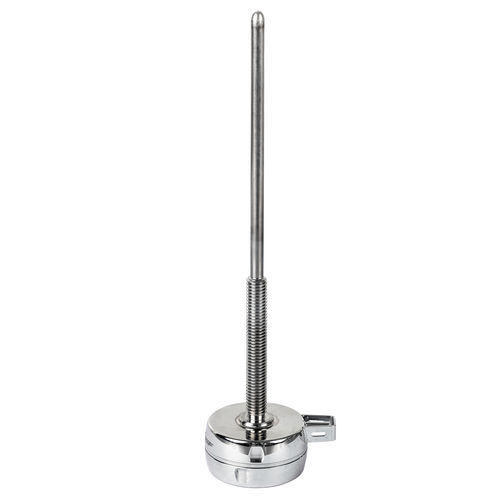

Temperature data-logger EBI 12-T462

wirelessPt1000without display

Product information
The EBI 12-T462 temperature data logger is designed for validation measurements in food and beverage manufacturing processes. A central axial probe records the internal temperature inside cans or bottles while a lateral sensor monitors the external temperature of the package. Recorded data support analysis of temperature exposure time and evaluation of thermal process performance. The unit features high resolution, extended memory and IP68 protection suitable for wet processing environments.

Benefits:

• Dual-probe measurement (axial and lateral)
• Wide measuring range: -55 °C … +150 °C
• High resolution (0.01 °C) and accuracy
• Large onboard memory: 2 x 13,920 values
• IP68 protection for use in wet environments

Applications:

• Food safety monitoring
• Pasteurization and sterilization process validation
• PU and F0 value determination
• Determination of temperature exposure time in packaged beverages
• Thermal process documentation for QA

Documents:

• Datasheet (PDF)
• Manual (PDF)

Standards and Directives:

• (EC) 1935/2004 Materials and articles intended to come into contact with foodstuffs
• 2014/53/EU Radio Equipment Directive (RED)

Technical specifications:

• Data memory: 2 x 13,920 measurement values
• Sensor: Pt 1,000, Class A
• Weight: approx. 110 g
• Accuracy: ± 0.5 °C (-55 °C … -40 °C), ± 0.2 °C (-40 °C … 0 °C), ± 0.1 °C (0 °C … +150 °C)
• Protection class: IP68
• Dimensions: Ø 48 mm x H 24 mm; needle length 190 mm
• Resolution: 0.01 °C
• Factory calibration: -20 °C, 0 °C, +60 °C and +121 °C
• Measured variable: Temperature
• Interval: 1 s … 24 h
• Measuring range: -55 °C … +150 °C
• Storage temperature: -20 °C … +70 °C
