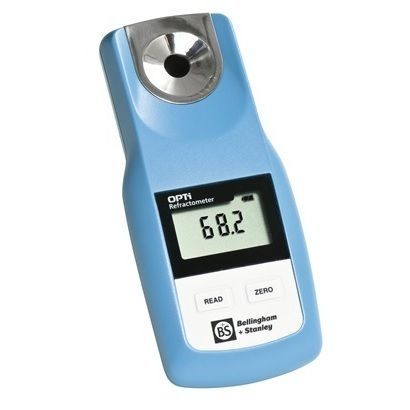

Brix scale refractometer OPTi®

digitalportableindustrial

Product overview
The pocket-sized digital refractometer OPTi® delivers rapid on-the-spot concentration measurement with automatic temperature correction. Portable and simple to operate, it provides accurate one-button readings and a clear numeric display suitable for industrial and laboratory field checks.

Key features

• Ergonomic IP65 design for splash and dust resistance
• Wide measuring range: 0–95 °Brix (1.333–1.530 RI)
• One instrument — onboard library of 50 scales
• Special Features menu: HAL, AG Test Mode, Delay before reading, PIN protection
• Truly portable for on-the-spot measurement; battery powered (2×AAA)

Downloads / Manual
User guide and marketing brochure available in PDF format.

Extended description
The OPTi® digital handheld refractometer from Bellingham + Stanley (Xylem) is designed for a wide range of applications including food & beverage, chemical, life science, automotive and industrial processes. The instrument covers a broad measurement span (0–95 °Brix / 1.3330–1.5300 RI) and can store and activate up to three user-selected scales (A, B, C) from a library of 50. Automatic Temperature Compensation (ATC) is applied as appropriate for the selected scale or sample. The Special Features menu provides high ambient light detection (HAL), AG Test Mode for performance verification, a delay-before-reading function to stabilise sample temperature, selectable temperature display (°C/°F) and resettable PIN protection. The OPTi® is manufactured in the UK and ships pre-loaded with the Brix scale (Scale A).

Specification table
Specification | Brix | Refractive Index | Other Scale Data
Range | 0-95 | 1.3330-1.5300 | 50 scale library (see scale list for full details)
Resolution | 0.1 | 0.0001 | -
Accuracy | 0.2 (Brix) | 0.0003 (RI) | -
Automatic Temperature Compensation | ICUMSA / None (scale dependent) | ICUMSA / None (scale dependent) | ICUMSA, None, or Application Specific
Temperature Range (ambient) | 5-40 °C | - | -
Temperature Range (sample) | 5-95 °C | - | -
Special Features | HAL (High Ambient Light detection), Error messaging, Battery life indicator, AG Test Mode, Scale library, Delay before reading, °F/°C switch, Serial & Version No, PIN control | - | -
Prism Dish | Moulded stainless steel | - | -
Prism Seal | Silicone | - | -
Prism | 8 mm optical glass | - | -
Sample Illumination | LED (yellow) | - | -
Display | 4 ½ digit LCD | - | -
Key Functions | READ, ZERO | - | -
Keypad Material | Silicone rubber | - | -
Case Material | Acrylonitrile Butadiene Styrene (ABS) | - | -
IP Rating | IP65 | - | -
Humidity | <95% RH (non-condensing) | - | -
Battery | 3V, 2 x AAA (LR03) | - | -
Battery Life | 10,000 readings | - | -
Nett Weight | 115 grams (including batteries) | - | -
Gross Weight | 295 grams | - | -
Dimensions - Instrument | 12 x 5.5 x 3.5 cm (l x w x h) | - | -
Dimensions - Packed | 25 x 10 x 6.5 cm (l x w x h) | - | -
Code No. | 38-01 | - | -
EAN | 5060322030470 | - | -

Technical features / specifications

• Measured variables: concentration measurement of sugar, salt, alcohol and various others
• Measuring range (sample): +5 °C ... +95 °C (+41 °F ... +203 °F) (sample temperature compatibility depends on application)
• Ambient operating temperature: 5–40 °C
• Protection class / IP rating: IP65
• Battery: 3V, 2 x AAA (LR03); battery life approx. 10,000 readings
• Display: 4½ digit LCD
• Prism: 8 mm optical glass; prism dish moulded stainless steel; prism seal silicone
• Sample illumination: yellow LED
• Key functions: READ, ZERO; keypad material silicone rubber; case material ABS
• Weight: Nett 115 g (incl. batteries); Gross 295 g
• Dimensions (instrument): 12 x 5.5 x 3.5 cm (l x w x h)
• Special features: HAL, AG Test Mode, Delay before reading, °F/°C switch, 50-scale library, PIN control, error messaging, battery indicator
• Pre-loaded scale: Brix (Scale A)
• Manufactured in: UK
