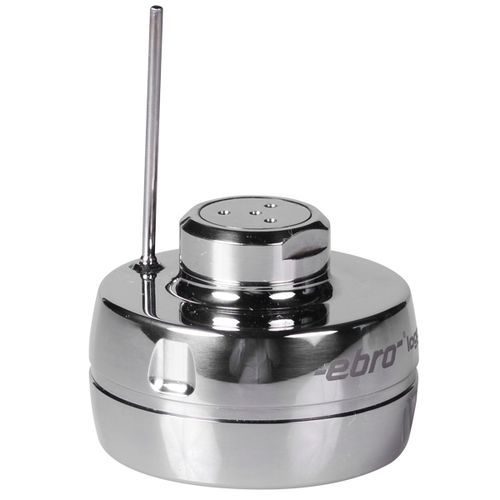

Temperature data-logger EBI 12-TP290

pressurewirelessPt1000

Overview
In VH2O2 sterilizers, generation of a fine vacuum is a prerequisite for effective sterilization. The EBI 12-TP290 pressure data logger records pressure and temperature with measurement resolution down to 0.1 mbar and is intended for routine checks and validation measurements. Do not use the logger in a steam sterilizer or expose it to absolute pressure > 2,000 mbar.

Benefits

• High-accuracy pressure and temperature measurement
• Designed for use in sterilizer environments
• Fast response time for transient events
• Real-time data transmission option

Applications

• Sterilization with VH2O2 — validation and routine checks

Documentation
Datasheet (PDF) and User Manual (PDF) available.

Technical specifications

• Product reference / SKU: 1340-6666
• Data memory: 33,440 measurement values
• Sensor: Pt1000, piezoresistive pressure sensor
• Weight: Approx. 120 g
• Accuracy: Pressure: ±0.25 mbar (0.1 to 50 mbar); ±5% of measured value (50 to 100 mbar); ±1% FS (100 to 1050 mbar). Temperature: ±0.1 °C (0 °C to +85 °C)
• Protection class: IP68
• Dimensions: ø 48 mm x 35 mm; needle length 40 mm
• Resolution: Pressure: 0.1 mbar; Temperature: 0.01 °C
• Certificate: Factory calibration at 0 °C and +60 °C
• Measured variables: Pressure, Temperature
• Interval: 250 ms ... 24 h
• Battery: Lithium cell, 3.6 V, user replaceable
• Measuring range: Pressure: 0.1 mbar ... 1050 mbar; Temperature: 0 °C ... +85 °C
• Standards and Directives: 2014/53/EU Radio Equipment Directive (RED)
