Pressure data-logger EBI 11-P111wirelessPt1000without display
Add to favorites
Compare this product
Characteristics
- Measured quantity
- pressure
- Connector type
- wireless
- Sensor type
- Pt1000
- Display
- without display
- Applications
- for medical applications
- Other characteristics
- battery-powered, compact, with connector, high-accuracy, IP68, miniature
- Memory capacity
15,000 unit
Description
Product overview

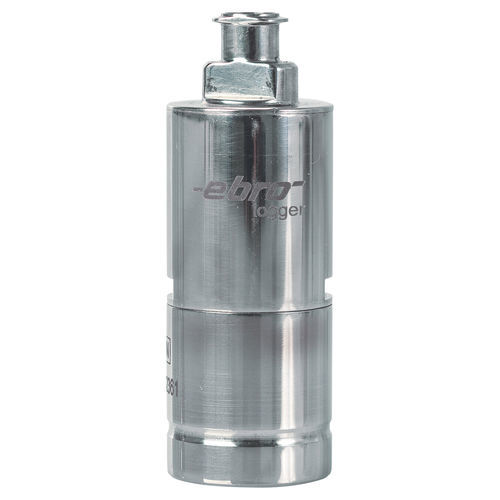

Miniature pressure data logger designed to record temperature-compensated absolute pressure during validation of small sterilizers and cassette autoclaves. Compatible with washer-disinfectors (RDGs) and systems such as Sirona DAC Universal and Melag Careclave. Universal Luer lock connection enables direct insertion into test ports and endoscope dummies. Compact form factor and wireless data acquisition simplify use in confined spaces.
Key benefits
Applications
Documents
Datasheet and user manual are available for download.
Technical specifications
Miniature pressure data logger designed to record temperature-compensated absolute pressure during validation of small sterilizers and cassette autoclaves. Compatible with washer-disinfectors (RDGs) and systems such as Sirona DAC Universal and Melag Careclave. Universal Luer lock connection enables direct insertion into test ports and endoscope dummies. Compact form factor and wireless data acquisition simplify use in confined spaces.
Key benefits
- Compact dimensions for insertion into small sterilizers and cassettes
- Wide measuring range (1–10,000 mbar)
- Wireless data acquisition
- Luer lock connection for universal compatibility
- High measurement accuracy
Applications
- Process validation in cassette autoclaves and small sterilizers
- Validation with DAC Universal
- Validation with Careclave
- Process validation using endoscope dummy (Spypach)
- F0 value calculation and steam sterilization cycle analysis
Documents
Datasheet and user manual are available for download.
Technical specifications
- Data memory: 2 x 7500 measurement values
- Sensor: Pt1000
- Weight: approx. 45 g
- Accuracy: ±15 mbar (0–4000 mbar); ±20 mbar (4000–10000 mbar)
- Protection class: IP68
- Dimensions: ø 16.5 mm x 47 mm
- Resolution: 1 mbar
- Certificate: Factory calibration certificate
- Measured variable: Temperature-compensated absolute pressure
- Measurement interval: 1 s...24 h (configurable)
- Battery: 2 x 3 V
- Measuring range: 1 mbar...10,000 mbar
- Storage temperature: -20 °C...+70 °C
