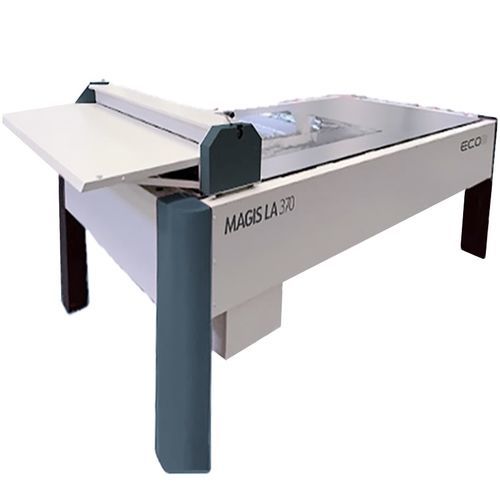

Dry laminating machine MAGIS LA 370

hotroll-to-rollfor plastic film

MAGIS LA 370 is a Dry Film Laminator (DFL) with ECO3 technology and specifications that allow a perfect preparation for Flat Top Dot. Optimized for MAGIS film and plates All MAGIS components - direct imager, dry film, plates and laminator have been carefully designed to offer top-notch flexo print quality. Perfect flat top dots Achieve impeccable print quality with our flexo technology that delivers flawlessly flat top dots. Experience heightened color consistency, sharper images, and enhanced visual appeal, setting new standards in print perfection. Flexible media support Flexo plates up to 920 mm (37") long and 1130 mm wide can be laminated. Durable and easy to use The MAGIS LA 370 is straightforward to use and built to last. Adjustable height For optimal workplace ergonomics, the height of the working surface can be adjusted by 200 millimeters. Specifications Plate length (min - max) 300 - 940 mm (12 - 37") Features included - Automatic de-lamination of the protection film and lamination of the dry film with an iron - Easy to use height adjustment Dimensions - Width: 1572 mm (61.9") - Depth: 1710 mm (67.4") - Height: 1160 1360 mm (45.7 – 53.6”) Weight 210 kg Power supply Single phase 1W + N + PE 230V / 1 Amps 50/60Hz Rated power 200 watts
