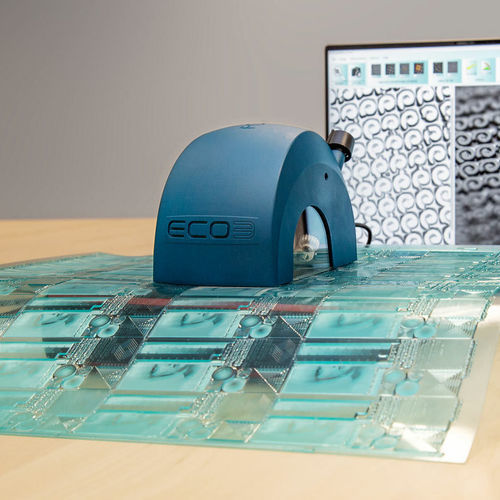

Geometry measurement system MAGIS FC3D+

3D2Dcamera-based

MAGIS FC3D+ is the only flexographic measuring device in the world that simultaneously captures the surface as well as the lower areas of grid points and their base from the side. Two cameras record the surface and flanks of the grid points, whereby the side camera can detect the entire visible area thanks to a newly developed method. The new aperture control of the side camera additionally permits the exact adjustment to the lighting or the requirements of different plate materials and grids. Both functions together make it possible to show every point in the image in razor-sharp resolution, display the finest details and ensure a high level of measurement accuracy. Specifications Dot area (%) Flexo Plates Dot size (diameter in µm/mm) Masked material, film Screen ruling (lines per cm or inch) Side view Line width & angle Conventional flexoplates Color, with CMYK separation Rubber plates, except black Statistics, Graphics,Data Comparison metal back plates, partial Plate type AM, FM, HD Measurement technology Sensor 1,3 MB Analysing area: ~2mm2 Screen ruling: 30-85L/cm; 76-216 Lpi Repeatability: +/- 0,5% ISO Calibration target Stationary light box where the instrument is guided Optical System Full scan of the entire 3D image with PMAG >4x, resolution > 288L/mm 3D-PMAG: >4x; resolution> 228L/mm. f. side camera Individual image contrast and brightness control Calibration 2D and 3D in X-Y-Z Delivered components MAGIS FC3D+ head with software and dongle (64 Bit) Spécial backlight illumination Transportation box
