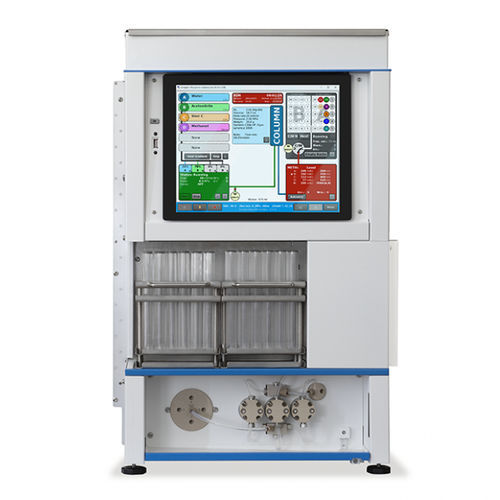

Flash chromatography system TOY18DAD800

laboratoryprocessUV/VIS

This highly effective, compact flash system contains a UV-VIS DAD detector, a flash gradient pump, and a fraction collector. The system can measure at four wavelengths simultaneously and scan the entire spectrum. Furthermore, 3D data can be displayed. One of the system‘s main advantages is its special pumping system design, which suppresses pulsation. The system is controlled via a built-in PC and touchscreen. This modular solution can also be configured according to customer requirements. It is a UV-VIS diode array detector, which allows measuring absorbance at four wavelengths in the range of 200‑800 nm simultaneously, just as scanning of the whole spectrum. Standardly, there is an assembled PFC cell with an optical path length of 0.3 mm, but other cells are available. ECF2096 Fraction Collector Fractions are collected according to the chosen method, which can be created comfortably using a touch screen. Racks for 8, 21, 40 tubes, 60 ml vials, or 12 funnels. ECP2303 three-head low-pressure gradient pump The basic version comes with a two-component low-pressure gradient, while the extended version comes with a four-component low-pressure gradient.
