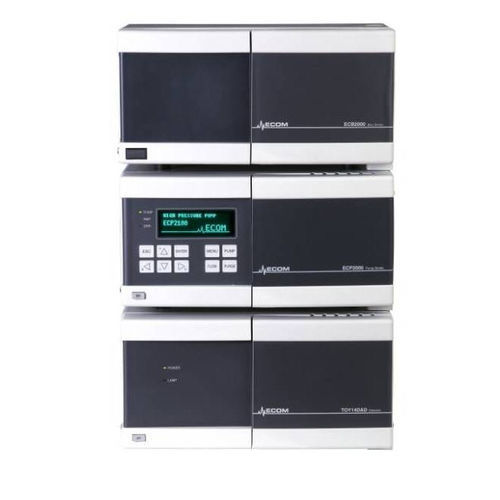

HPLC chromatography system ECS21

flashpreparative liquidlaboratory

A highly effective preparative system containing a UV-VIS DAD detector, a preparative pump, and a gradient box. The detector allows measuring at four wavelengths at the same time or an informative scan. Communication is through RS232 or Ethernet(LAN). An additional PC A/D converter card is not required for this system. The system contains a manual injector and ECOMAC software which include drivers for all ECOM units. A wireless mouse and keyboard set (P/N: EPC-0028), PC (P/N: EPC-0026) and a computer monitor (P/N: EPC-0027) can be purchased with the system. Main parts TOY18DAD H 600 DETECTOR is a UV-VIS diode array detector, which allows measuring the absorbance of four wavelengths in the range of 200 – 600 nm simultaneously in one cell just as visualization of whole spectra. It is possible to use the detector in flash and preparative applications. Standardly is assembled preparative cell PLCC 15 but other cells are available. ECP2050 PREPARATIVE PUMP This isocratic pump works with Gradient Box ECB2007 as a quaternary gradient pump. The flow rate range is 0.1-50 ml/min and the pressure limit at 30 MPa. Unit software includes a new learning algorithm for pulsation suppression and many testing and diagnostic functions. ECB2007 GRADIENT BOX WITHOUT DEGASSER The box is suited for handling liquids in ECOM gradient systems. It accommodates a container for solvent bottles and a four-way gradient valve. A four-way gradient valve is controlled by the pumps ECP2010 or ECP2050. ECOMAC CHROMATOGRAPHY SOFTWARE This system is fully controlled by ECOMAC software, which is also a part of delivery.
