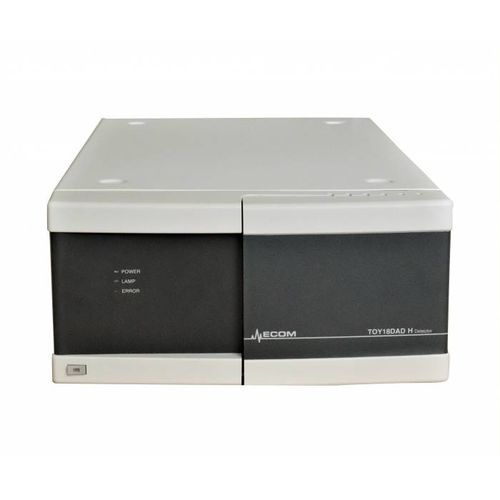

Speed detector TOYDAD H

flowscanning3D

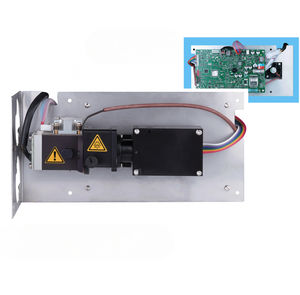

TOYDAD H Detectors are produced in many versions according wavelengths range, number of measuring channels and scanning possibility. Four wavelength ranges (200 - 400; 200 - 600; 200 - 800 and 190 - 800 nm) are offered in versions which measure on two or four wavelengths with informative scan on query or in Scanning version which measures at four wavelengths simultaneously or sends a scan at a speed up to 20 Hz which allows the creation of a 3D picture. More wavelengths or scans are used in liquid chromatography to verify the purity of analyzed samples or in situations when some peaks absorb on different wavelengths. The unit is supplied with an AMY17 PCB board of dimensions 100 x 160 mm (3.94 x 6.30 in). It powers the lamps and controls the unit. Thanks to new board features it allows sending a scan of spectra with high resolution and speeds up to 20 Hz depending on the baud rate. The most important features of TOYDAD H Detectors : • communication using LAN, USB and RS232 • four analog outputes • IO interface • built-in lamp working hours counter • easy flow cell connection • measuring at more wavelengths simultaneously • sophisticated diagnostic software
