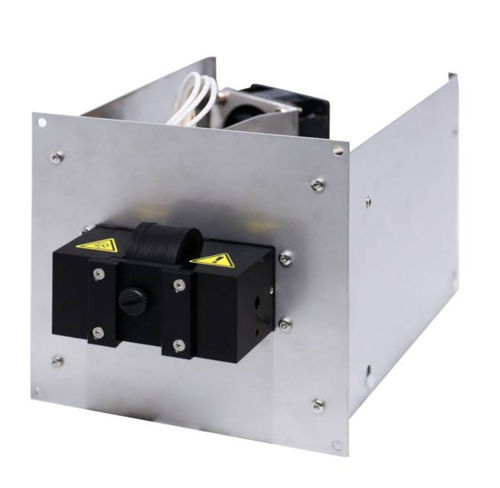

Speed detector TOYDAD U

lengthopticalscanning

TOYDAD U Detectors are produced in many versions according wavelengths range, number of measuring channels and scanning possibility. They use Basic PFC cells without a bracket. Four wavelength ranges (200 - 400; 200 - 600; 200 - 800 and 190 - 800 nm) are offered in versions which measure on two or four wavelengths with informative scan on query or in Scanning version which measures at four wavelengths simultaneously or sends a scan at a speed up to 20 Hz which allows the creation of a 3D picture. More wavelengths or scans are used in liquid chromatography to verify the purity of analyzed samples or in situations when some peaks absorb on different wavelengths. TOYDAD U Detectors are delivered with a PFC cell with optical pathlength of 0.1 mm. But according customer request are available cells with optical path length from 0.05 - 5 mm. The unit is supplied with an AMY17 PCB board of dimensions 100 x 160 mm (3.94 x 6.30 in). It powers the lamps and controls the unit. Thanks to new board features it allows sending a scan of spectra with high resolution and speeds up to 20 Hz depending on the baud rate. AMY17 board allows to have optional extension modules (for additional cost): • Analog outputs board • LAN and USB board • Display with keyboard • Leakage sensor
