Gas blower
aircentrifugalimpeller

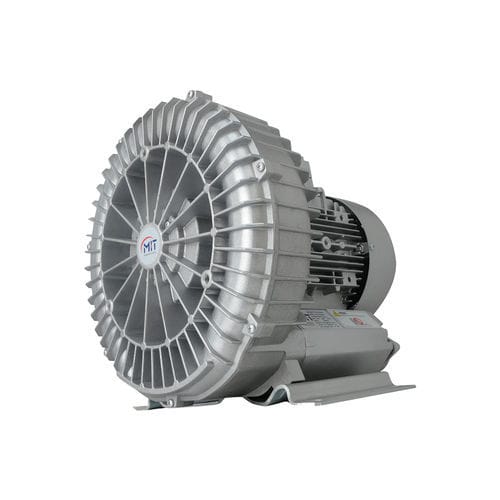

Gas blower - Ekin Industrial - air / centrifugal / impeller
Gas blower - Ekin Industrial - air / centrifugal / impeller
Gas blower - Ekin Industrial - air / centrifugal / impeller - image - 2
Add to favorites
Compare this product

Characteristics

Type
air, gas
Technology
centrifugal, impeller
Number of stages
single-stage
Applications
suction, fan
Other characteristics
oil-free, vortex
Flow

2,500 m³/h
(88,286.667 ft³/h)

Operating pressure

Max.: 670 mbar
(9.718 psi)

Min.: 0 mbar
(0 psi)

Nominal power

Max.: 25 kW
(33.991 hp)

Min.: 0.2 kW
(0.272 hp)

Sound level

Max.: 85 dB

Min.: 50 dB

Description

Blowers are installation equipment that enables the transfer of air in the emitted environment at high flow rate or low pressure and rotates the fan with the force received from the engine. The fan inside the blowers rotates and vacuums the air in the suction section. The trapped air is then pushed towards the outlet side. Blowers are generally used to move air. MIT brand blowers offer the most reliable service for their application areas in terms of size, performance and technology. Blower Pump Advantages Environmentally friendly thanks to oil-free operation Minimum vibration with dynamic balancing Easy and diverse assembly Although blowers operate differently depending on the power of the engine they contain, basically all blowers are installation equipment that provides the transfer of air in the emitted environment at high flow rate or low pressure and rotates the fan with the force it receives from the engine. Blowers increase the pressure of the absorbed gas as a result of a series of vortex movements created by the centrifugal movement of the impeller. As the wheel rotates, the channels in the wheel push the air forward in a centrifugal motion and a helical movement occurs. During this movement, the gas is constantly compressed along the channel and the pressure increases linearly. The pressurized air is transferred to the installation to be used from the outlet channel of the blower.
