Femtosecond laser system UltraFlux HE

fiberindustrialfor spectroscopy

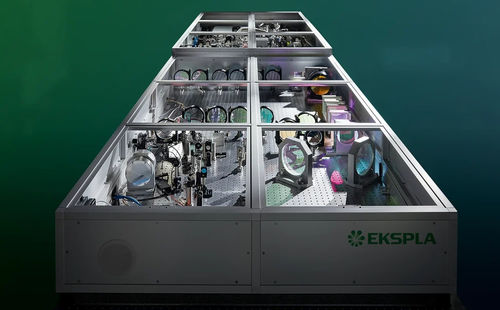

The UltraFlux HE series is a high energy femtosecond OPCPA (Optical Parametric Chirped Pulse Amplification) laser system designed for demanding scientific and industrial applications. Delivering up to 30 TW peak power at up to 10 Hz, it was originally developed for ELI‑ALPS (Extreme Light Infrastructure – Attosecond Light Pulse Source) in Hungary and is now available for a wide range of uses. The system is based on patented OPCPA technology and features a master oscillator that is an all-in-fiber Yb doped picosecond laser seed source with two fiber outputs, ensuring optical synchronization and eliminating the need for complex temporal synchronization systems. The Nd:YAG Picosecond Pump Laser system includes diode pumped and flash lamp pumped amplifiers, as well as second harmonic generators for wavelength conversion. The Front-End NOPCPA consists of several subsystems, including a picosecond optical parametric amplifier, grating compressor, white light generator, and femtosecond non-collinear optical parametric amplifier. The system uses a grism or Offner type pulse stretcher and a Dazzler for high order phase compensation, with multiple amplification stages to achieve up to 1 J pulse energy. Amplified pulses are compressed to femtosecond durations, and output diagnostics ensure reliable, turn-key operation.

Features

• Based on novel OPCPA technology
• Patented front-end design (EP2827461 and EP2924500)
• Up to 1 J pulse energy at 5 Hz repetition rate
• Pulse repetition rate from single shot to 100 Hz
• Pulse duration down to 10 fs
• Up to 50 mJ pulse energy at 100 Hz
• Excellent pulse energy stability: ≤ 1 % RMS
• Excellent long-term average power stability: ≤ 1.5 % RMS over 8-hour period
• Perfectly synchronized fs and ps output option available
• Hands free wavelength tuning
• High contrast pulses without additional improvement equipment

Applications

• Broadband CARS and SFG
• Femtosecond pump-probe spectroscopy
• Nonlinear spectroscopy
• High harmonic generation
• Wake field particle acceleration
• X-ray generation

Options

• -F10: Short Pulse option reduces output pulse duration to ≤ 10 fs (wavelength tunability not available with this option)
• -CEP: CEP stabilization to ≤ 400 mrad (passive and active stabilization)
• -DM: Deformable Mirror option for Strehl ratio improvement to > 0.9
• -SH/TH/FH: Second, third, and fourth harmonic outputs (conversion efficiency ~35%, ~12%, ~3% respectively; not simultaneous with signal output)
• -ps out: Additional ps output optically synchronized to main system output (can be simultaneous or non-simultaneous)
• -AW: Air-water cooling (no external water required; heat dissipation equals total power consumption)

Specifications (selected models)

• Output energy (signal): 3 mJ (FT310), 100 mJ (FT10010), 50 mJ (FF50100-F10), 800 mJ (FF8005)
• SH output: up to 3.5 mJ
• TH output: up to 1.2 mJ
• FH output: up to 300 µJ
• Pulse repetition rate: 10 Hz (FT310, FT10010), 100 Hz (FF50100-F10), 5 Hz (FF8005)
• Wavelength tuning range (signal): 750–960 nm (FT310, FT10010), 840 nm (FF50100-F10, FF8005)
• Pulse duration: 40 ± 20 fs (standard), ≤ 10 fs (F10 option)
• Pulse energy stability: ≤ 1.5% (standard), ≤ 1% (FF50100-F10)
• Long-term power drift: ±1.5%
• Beam spatial profile: Super-Gaussian
• Beam diameter: ~5 mm to ~80 mm depending on model
• Beam pointing stability: ≤ 20 µrad
• Temporal contrast: APFC (within ±50 ps): 10¹⁰:1; Pre-pulse (50–10 ps): 10⁸:1; Pre-pulse (10–1 ps): 10⁶:1; Post-pulse (beyond 20 ps): 10⁶:1
• Optical pulse jitter (Trig out): ≤ 100 ps; (Pre-Trig out): ≤ 50 ps; (With –PLL option): ≤ 2 ps
• Polarization: linear
• Laser head size (W×L×H): ranges from 900 × 1500 × 300 mm to 1500 × 2000 × 500 mm (varies by model)
• Power supply size (W×L×H): ranges from 553 × 600 × 850 mm to 553 × 600 × 1800 mm
• Umbilical length: 5 m
• Electrical power: 200–240 V AC single-phase or 208/380/400 V AC three-phase (depending on model)
• Power consumption: ≤ 1 kVA to ≤ 11 kVA (depending on model)
• Water supply: ≤ 3 to ≤ 14 l/min, 2 Bar, max 15–20 °C
• Operating ambient temperature: 22 ± 2 °C
• Storage ambient temperature: 15–35 °C
• Relative humidity (non-condensing): ≤ 80%
• Room cleanness: ISO Class 7

Note

• Laser must be connected to mains electricity at all times. If disconnected for more than 1 hour, a warm-up period of a few hours is required before switching on.

Typical Models

• UltraFlux FT310
• UltraFlux FT10010
• UltraFlux FF50100-F10
• UltraFlux FF8005

Ordering information

• Ordering diagrams and further details are available in the product documentation.

Characteristics / Technical Specifications

• Peak power: up to 30 TW
• Pulse energy: up to 1 J
• Pulse duration: down to 10 fs
• Repetition rate: up to 100 Hz
• Wavelength tuning: 750–960 nm (signal), harmonics available
• Pulse energy stability: ≤ 1–1.5% RMS
• Long-term power drift: ±1.5% over 8 hours
• Beam profile: Super-Gaussian
• Beam diameter: model dependent
• Pointing stability: ≤ 20 µrad
• Polarization: linear
• Power supply: single or three-phase, model dependent
• Cooling: water or air-water (option)
• Room requirements: ISO Class 7, 22 ± 2 °C, ≤ 80% RH
