Cupping tester 1620

resilienceflawfor coating

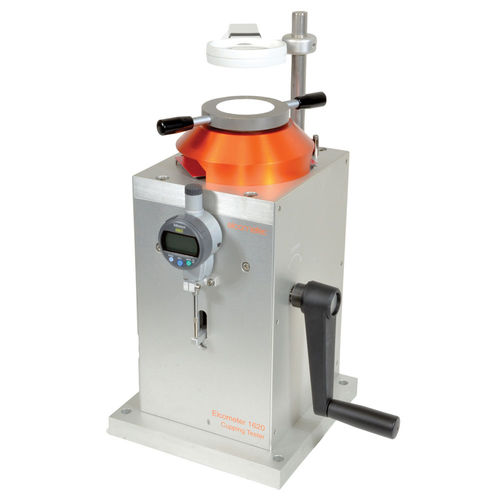

This robust and user-friendly instrument is used for assessing the cupping ability of coatings applied to metal sheets up to 1.2mm (0.05”) thick. The Elcometer 1620 Cupping Tester has a 27mm (1.06”) diameter hardened steel die in a clamping device and a 20mm (0.79”) diameter punch. A hand-rotated crank and reduction drive moves the punch progressively into the sample. The Elcometer 1620 Cupping Tester has a digital gauge with an illuminated magnifier to accurately view the resultant damage and provides accurate readings of the cupping depth on an integrated gauge. Direct viewing of the fissures, cracks and tears in the coating of up to 10μm (0.4mil) can be viewed through the supplied x10 illuminated magnifying glass.
