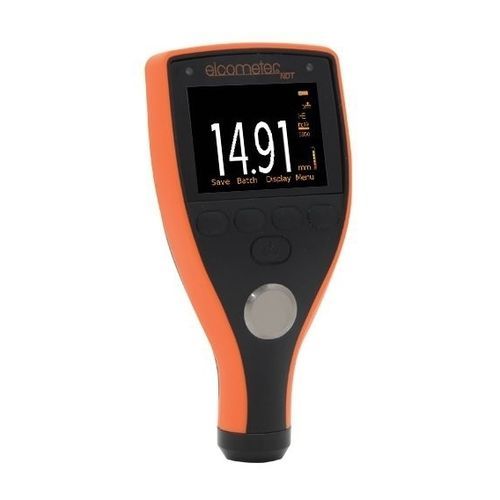

Material thickness gauge PTG6

portablehandheldultrasonic

The Elcometer PTG Precision Thickness Gauge range comes with all the features and functionality necessary for precisely measuring material thickness on virtually any material. Accurate Measures thin materials with pinpoint accuracy Flexible & easy to use, the Elcometer PTG gauges have a measurement range from 0.15mm (0.006”) to 25.40mm (1.000”) with up to ±1% accuracy, across three measurement modes; Interface Echo (IE), Echo Echo (EE) & Plastic mode (PLAS). Powerful Store each measurement for further analysis Up to 100,000 readings can be saved into the gauge memory as each measurement is taken, which can be downloaded later into an inspection application or into ElcoMaster® for further analysis and reporting. Wireless Connectivity Seamlessly connect to any PC, Android™ or iOS mobile device Connect the Elcometer PTG8 via Bluetooth® or USB to a PC, Android™ or iOS mobile device & download the data into an inspection application or into ElcoMaster® Software for instant report generation. Elcometer Ultrasonic Precision Thickness Gauge Features: • Interface Echo (I-E) Echo-Echo (E-E) ) & Plastic Mode (PLAS) measurement modes • 2-Point, 1-Point, Material & Factory Calibration options • Three user programmable calibration memories • Scan Mode • Readings, selected statistics, Bar Graph, Run Chart, B-Scan & Differential Mode • User definable upper and lower limits with audible & visual pass/fail warnings • USB and Bluetooth® data output to ElcoMaster® and ElcoMaster® Mobile Apps
