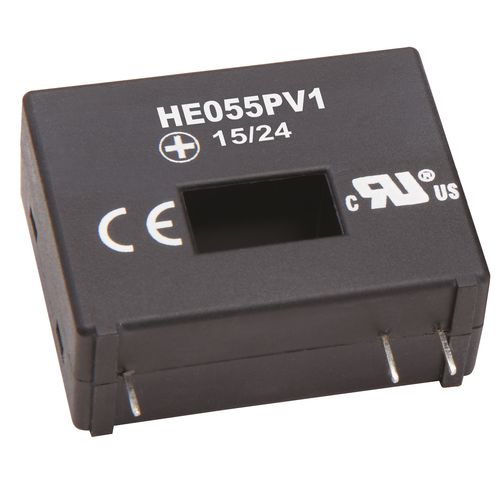

Closed-loop Hall effect current sensor HE055PV1

PCBACDC

Hall Effect Current Sensor, Closed Loop These products are used in measurement of Alternating and Direct Current in electrical and electronic equipments such as SMPS, UPS, industrial drives AC drives & DC drives, Control in process application like light control, Heater load control etc KEY FEATURES •DC, AC and pulsated current measurements with Galvanic isolation. •50A closed loop Hall effect current sensor with rectangular opening. •Dual supply operated ±12 to ±15V. •Fast response time,no insertion losses. •Excellent accuracy,low temperature drifts. RELATED APPLICATION •Solar String monitoring •Off grid inverters •Automation devices SPECIFICATION Product NoHE055PV1 Ipn (A)50 IpMax (A)±70 Sup. Voltage(V) ±12 ... ± 15 Iout/Vout @Ipn 50 mA Bandwidth-3dB(kHz)DC - 200 Accuracy % ±0.6 Secondary TerminationPIN Terminals Mounting TypePCB
