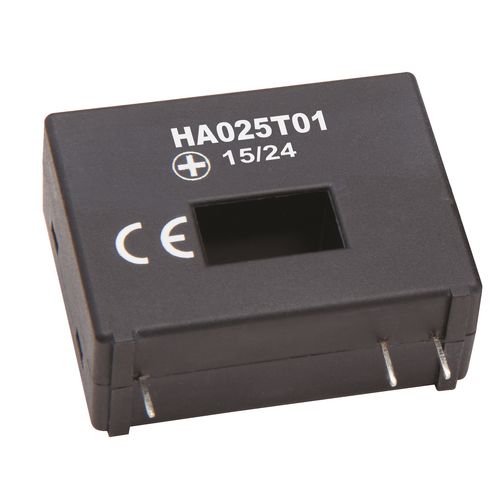

Closed-loop Hall effect current sensor HA025T01

PCBACDC

Hall Effect Current Sensor, Closed Loop These products are used in measurement of Alternating and Direct Current in electrical and electronic equipments such as SMPS, UPS, industrial drives AC drives & DC drives, Control in process application like light control, Heater load control etc KEY FEATURES •DC, AC and pulsated current measurements with Galvanic isolation. •25A closed loop Hall effect current sensor with bigger rectangular opening. •Single supply operated +5V. •Fast response time,No insertion losses •Excellent accuracy . •Low temperature drifts. •Excellent linearity,CE marked. RELATED APPLICATION •Automation Devices •SSM/PVEM. •Central/Off Grid Inverters SPECIFICATION Product NoHA025T01 Ipn (A)25 IpMax (A)±56 Sup. Voltage(V) +5.0 Iout/Vout @Ipn 2.5 ± 0.625 V Bandwidth-3dB(kHz)DC - 200 Accuracy % ±0.6 Secondary TerminationPIN Terminals Mounting TypePCB
