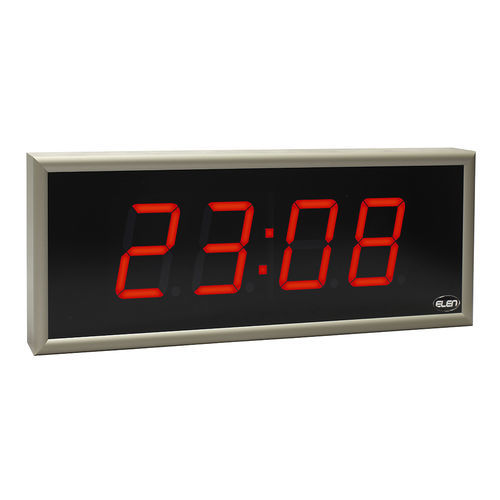

Wall-mounted clock NDC 100/4 R L20 12DC LAN

LEDdigitalnetwork

The NDC 100/4 R L20 12DC LAN series digital LED wall clocks are electronic devices which primarily display the current time and date information, but can also be set and used as a stopwatch or countdown, count-up counter/timer. The clock is especially suitable for use in modern interiors of various public institutions, offices, railway and bus stations, airports, hospitals, shopping centers, banks, production plants and many other places, where its installation provides an aesthetic and practical add-on. All clock‘s parameters, e.g. time, date, stopwatch, countdown, brightness, the type and duration of displayed information, etc., can be set via LAN connection with PC using Internet web browser and clock‘s embedded application - Web Server. The clock is equipped with a LAN Ethernet interface, which allows its integration into a unified time system and synchronization with NTP server or other clocks on the network using LAN Ethernet TCP/IP connection with Modbus TCP communication protocol. During its construction the maximum emphasis was placed on high functional reliability and aesthetic appearance. High-brightness 7-segment LED modules and a gray color tinted cover glass with an anti-reflective coating ensure good readability and a wide viewing angle. The brightness level can be controlled automatically, depending on the ambient lighting conditions, or manually, according to the user's preference. Installation is easy, the clock is supplied with a wall hanging bracket, power supply adapter 230VAC / 12VDC and installation instructions.
