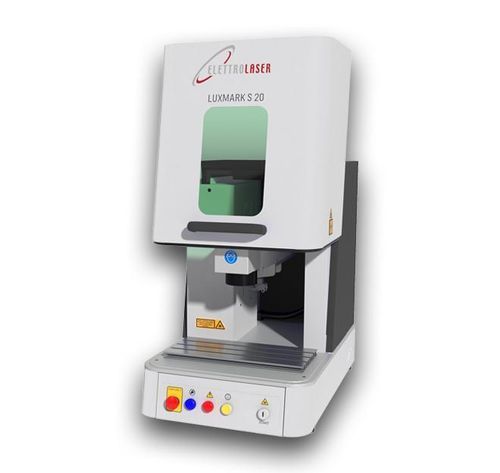

Fiber laser marking machine Luxmark S series

UV laserMOPA laserceramic

Overview
Luxmark S is a benchtop laser marker designed for precise marking, engraving and micro-cutting in industrial and jewelry production. Its closed-chamber layout with an ergonomic tilt door provides safe, space-saving operation. Multiple laser sources (Fiber, MOPA, GREEN, UV) enable processing of metals, alloys, plastics, ceramics and other materials.

Main features

• Marking chamber: 450 x 285 mm (18" x 11")
• Motorized Z-axis travel: 185 mm (7.4")
• Available laser configurations: fiber (20/30/50/60 W, including MOPA/NIB), GREEN (3–7 W), UV (3–7 W)
• Frequency: up to 4000 kHz (where applicable)
• Software: advanced, professional, multilingual; compatible with DXF, DWG, SVG, PLT, AI, BMP, JPG and more
• Ergonomics: tilt access door for easy loading/unloading
• Optional accessories: XY tables, machine vision, 3D heads, rotary marking, 2.5D relief engraving

Applications

• Laser marking and engraving on metals, alloys, plastics and ceramics
• Micro-cutting of thin plates and components
• Customization of complex or three-dimensional objects
• Deep engraving of logos, texts, serial numbers, barcodes and QR Codes
• Marking of hallmarks and trademarks on jewelry
• Production of tags, medals and personalized tools
• Jewelry, industrial, promotional and artistic applications
• 2.5D relief engraving and marking on fittings/tubes
• Integration into semi-automatic or automated production lines

High-level performances

• Large work area: 450 x 285 mm
• Z-axis travel: 185 mm, controlled and precise
• Available laser powers: 20 W / 30 W / 50 W / 60 W (including MOPA, NIB)
• Other available sources: GREEN (3–7 W), UV (3–7 W)
• Frequency: up to 4000 kHz
• Software: professional, multilingual, customizable
• File compatibility: DXF, DWG, SVG, PLT, AI, BMP, JPG and more

Available variants (summary table)

• Luxmark S - UV
  • Cooling: air
  • Type: desktop
  • Power supply: 230 V AC, 50/60 Hz (110 on request) – 1.2 kW
  • Dimensions (cm): 48.2 x 74 x 70
  • Weight: 88 kg*
  • Output power: 3 / 5 W
  • Wavelength: 355 nm
  • Working area: 45 x 28.5 cm
  • Focal100: 6 x 6 cm / spot ~16 µm
  • Focal160: 10 x 10 cm / spot ~26 µm
  • Focal210: 14 x 14 cm
  • Axes Z: motorized / 20 cm
  • Laser Class: I
  • Max workpiece height: 18 cm
• Luxmark S - Green
  • Cooling: air
  • Type: desktop
  • Power supply: 230 V AC, 50/60 Hz (110 on request) – 1.2 kW
  • Dimensions (cm): 48.2 x 74 x 70
  • Weight: 88 kg*
  • Output power: 3 / 5 W
  • Wavelength: 532 nm
  • Working area: 45 x 28.5 cm
  • Focal100: 6 x 6 cm / spot ~16 µm
  • Focal160: 10 x 10 cm / spot ~26 µm
  • Focal210: 14 x 14 cm
  • Axes Z: motorized / 20 cm
  • Laser Class: I
  • Max workpiece height: 18 cm
• Luxmark S - Fiber
  • Cooling: air
  • Type: desktop
  • Power supply: 230 V AC, 50/60 Hz (110 on request) – 1.2 kW
  • Dimensions (cm): 48.2 x 74 x 70
  • Weight: 88 kg*
  • Output power: 20 / 30 / 50 / 60 W (20 W NIB)
  • Wavelength: 1064 nm
  • Working area: 45 x 28.5 cm
  • Focal100: 6 x 6 cm / spot ~16 µm
  • Focal160: 10 x 10 cm / spot ~26 µm
  • Focal210: 14 x 14 cm
  • Axes Z: motorized / 20 cm
  • Laser Class: I
  • Max workpiece height: 18 cm

Options & accessories

• 2.5D software for flat and curved pieces
• Pneumatic tilting mandrel for internal/external ring marking (automatic spindle)
• XY table for automation and medium production
• Guide plate with extractor for large-scale production
• Static vise (100 mm or 200 mm)
• Pattern matching technology (manual or automatic camera positioning)
• 3D marking head with specific 3D software for curved and complex surfaces
• Tube cutting unit for automated tube cutting
• Reverse engineering technology
• Dynamic height probe for automatic Z-axis positioning (detection range 40–140 mm)
• Plate marker for automatic/serial tagging
• Safety glasses for higher-class laser operation

Technical specifications

• Marking chamber size: 450 x 285 mm (18" x 11")
• Z-axis (motorized) travel: 185 mm (7.4")
• Working area: 45 x 28.5 cm
• Max workpiece height (S versions): 18 cm
• Available laser sources and typical outputs: Fiber 20/30/50/60 W (including MOPA/NIB); Green 3–7 W; UV 3–7 W
• Laser wavelength examples: Fiber 1064 nm; Green 532 nm; UV 355 nm
• Frequency: up to 4000 kHz (for applicable sources)
• Focal options and spot sizes: Focal100 → 6 x 6 cm / spot ~16 µm; Focal160 → 10 x 10 cm / spot ~26 µm; Focal210 → 14 x 14 cm
• Power supply: 230 V AC, 50/60 Hz (110 V on request) – typical consumption ~1.2 kW
• Cooling: air
• Laser class: I (closed-chamber configurations); some accessories/operations may require protective glasses
• Supported file formats: DXF, DWG, SVG, PLT, AI, BMP, JPG and more
• Software: professional, multilingual, customizable for industrial workflows
