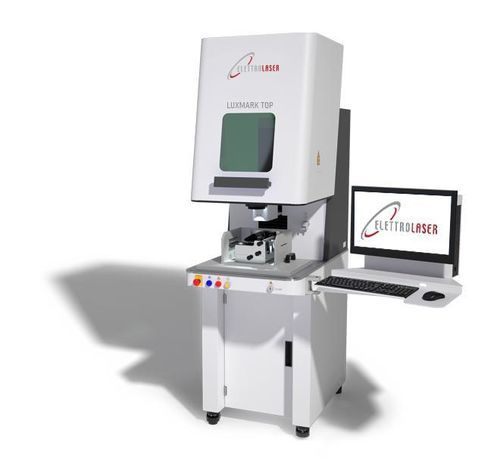

The Luxmark M & TOP is a benchtop/floor-standing laser system for marking, deep engraving and micro-cutting. It supports multiple laser sources (fiber, UV, MOPA, PICO, NIB and CO2 for TOP) and enables 2D, 2.5D and 3D processing on metals and technical materials with a large work chamber and motorized Z-axis control.

Key features

• Multi-source laser station for marking, deep engraving and micro-cutting
• Compatibility: fiber, UV, MOPA, PICO, NIB (CO2 for TOP variants)
• Large work chamber enabling 3D marking and 2.5D operations for molds and cavities
• Proprietary multilingual professional software with database integration and support for common raster and vector formats
• Innovative push-pull extraction system for laminar airflow

Applications

• Marking and deep engraving on metals and advanced technical materials
• Creation of cavities or cones for molds (2.5D)
• 3D marking on complex and curved shapes
• Precision micro-cutting and component structuring
• Suitable for jewelry, medical, automotive, electronics and mechanical industries
• Designed for integration in automated production lines

Performances (high-level)

• Work area: 550 x 500 mm
• Z-axis travel: 400 mm (controlled, motorized)
• Software: professional, multilingual, configurable; supports common raster and vector file formats
• Processing modes: 2D, 2.5D and 3D marking
• Extraction: push-pull system for laminar airflow

Variations (summary)

• Same mechanical platform with different laser sources and powers
• Green: air cooling, floor-standing, 230 V AC (110 on request), 3 / 5 W, 532 nm, working area 58 x 51 cm, focal options F100–F420
• Fiber: air cooling, floor-standing, 230 V AC (110 on request), 20–200 W (including MOPA/NIB/PICO variants), 1064 nm, working area 58 x 51 cm, focal options F100–F420
• UV: air cooling, floor-standing, 230 V AC (110 on request), 5 / 10 W, 355 nm, working area 58 x 51 cm, focal options F100–F420
• Typical machine dimensions: 62 x 100 x 170 cm; indicative weight: 220 kg*

Options & advanced features

• Smart vision system for pattern recognition and automated alignment (camera-based)
• Motorized XY table (TOP accessory) and auto strip feeder
• Rotary axes and pneumatic or motorized mandrels for ring and cylindrical marking
• 3D marking head with dedicated 3D software for spherical, conical and complex profiles
• 2.5D software for automatic layer/section creation on flat and slightly curved parts

Related accessories (selected)

• Dynamic height probe — measures piece height and auto-positions Z (full positioning on M and TOP)
• Pneumatic tilting mandrel — automatic internal/external ring marking with auto-focus positioning
• XY table for TOP — automates marking for small to medium production runs
• 3D marking head — for curved and irregular profiles
• Guide plate with extractor — keeps work area clean in large-scale production
• Static vises (100 mm / 200 mm) — precision clamping
• Pattern matching camera — advanced centering and automatic positioning
• Tube cutting accessory, reverse engineering tools, safety glasses for open Class IV lasers

Documentation
Manufacturer provides a downloadable product brochure (PDF) with full technical data, variant tables and options list.

Technical specifications

• Denomination: Luxmark M & TOP
• Work area (performance): 550 x 500 mm
• Work area (variant): 58 x 51 cm (typical)
• Z-axis travel: 400 mm; motorized travel up to 36 cm depending on configuration
• Supported laser sources: fiber, UV, MOPA, PICO, NIB, CO2 (TOP)
• Output power (examples): Green 3 / 5 W; Fiber 20–200 W (incl. MOPA/NIB/PICO); UV 5 / 10 W
• Wavelengths (examples): Green 532 nm; Fiber 1064 nm; UV 355 nm
• Power supply: 230 V AC, 50/60 Hz (110 V on request) — typical consumption 2 kW
• Machine dimensions (example): 62 x 100 x 170 cm
• Indicative weight: 220 kg*
• Focal options and marking areas: F100 6 x 6 cm (spot 16 µm); F160 10 x 10 cm (spot 26 µm); F210 14 x 14 cm; F254 17 x 17 cm; F330 23 x 23 cm; F420 28 x 28 cm
• Max workpiece height: up to 37.5 cm (F160) / 35 cm (3D) depending on configuration
• Laser Class: I for enclosed configurations; follow safety rules and use PPE for open Class IV setups
• Extraction: push-pull laminar airflow
