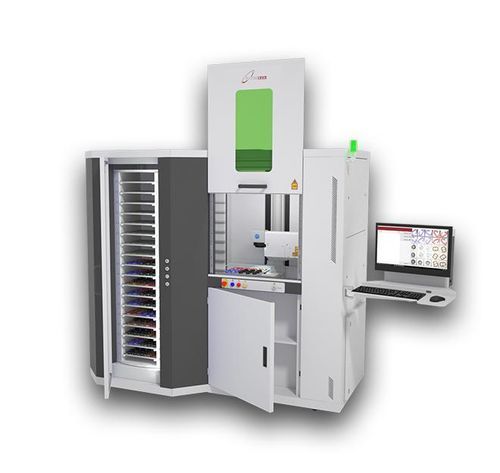

Fiber laser marking machine Luxmark W72 series

CO2 laserUV laserMOPA laser

Overview
Designed for intensive production environments, the Luxmark W72 is an industrial laser system that autonomously manages up to 72 pallets. Large-scale marking and micro-cutting system with integrated automatic handling: the system picks each pallet (300×300 mm), positions it under the laser, processes the part and repositions the finished piece. Configurable for continuous 24/7 operation and compatible with multiple laser sources and advanced automation options including multi-axes robotic arms for fully automated workflows.

Key capabilities

• Automatic handling of up to 72 pallets (300×300 mm)
• Integrated handling: automatic lifting, positioning and unloading of pallets
• Designed for continuous 24/7 production
• Compatible with fiber, MOPA, UV and GREEN laser sources
• Capable of 2D, 2.5D and 3D processing (deep engraving, high-precision micro-cutting, three-dimensional marking)
• Optional multi-axes robotic arm for loading/unloading and full automation (Industry 4.0 integration)
• Professional software for advanced marking and process control

Applications

• Fully automated laser engraving for mass production of metal and plastic components
• Precision micro-cutting for accessories, plates and technical parts
• Deep marking and unique coding on industrial batches
• Product traceability: serial numbers, QR codes, DataMatrix
• High-speed customization for industrial, medical and jewelry markets
• Integration in robotic systems for unattended processing
• Process optimisation aligned with Industry 4.0

High-level performances

• Automatic management of 72 pallets (size 300×300 mm)
• Integrated handling: automatic lifting, positioning and unloading
• Structure designed for continuous 24/7 production
• Configurable with fiber, MOPA, UV or GREEN laser sources
• Compatible with 2D, 2.5D and 3D processing
• Professional software for advanced marking and process control

Caractéristiques / Spécifications techniques

• Denomination commerciale: Luxmark W72
• Brand: Elettrolaser
• Number of pallets: 72
• Maximum pallet size: 30 x 30 cm (300×300 mm)
• Maximum pallet weight: 5 kg
• Pallet handling: automatic pick-up, positioning, processing and repositioning
• Intended operation: continuous/24/7 production
• Cooling system: air
• Machine type: floor standing
• Power supply: 230 V AC, 50/60 Hz (110 on request) - 3 kW
• Dimensions (cm): 210 x 115 x 192
• Weight: approx. 1000 kg*
• Working area: 66 x 50 cm
• Z axis: motorized, 30 cm
• Axis stroke: X: 70 cm; Y: 25 cm; Z: 30 cm
• Laser class: I (enclosed) / options for different open-source classes depending on configuration
• Compatible processing: 2D, 2.5D, 3D marking and cutting
• Focal / marking areas and spot sizes: Focal 100: 6x6 cm / 16 µm spot; Focal 160: 10x10 cm / 26 µm spot; Focal 210: 14x14 cm; Focal 254: 17x17 cm; Focal 330: 23x23 cm; Focal 420: 28x28 cm
• Laser source options and typical output powers by configuration: Fiber: selectable options 20 / 30 / 60 / 80 / 100 / 200 W (also MOPA / NIB / PICO); Green: 3 / 5 W (532 nm); UV: 5 / 10 W (355 nm); CO2: 10 / 30 / 60 / 100 W (10600 nm)
• Compatible processes: deep engraving, high-precision micro-cutting, three-dimensional marking
• Optional accessories and integrations: multi-axes robotic arm for loading/unloading, guide plate, pneumatic/3-jaw/tilting mandrels, dynamic height probe, pattern matching, 2.5D and 3D marking heads, vacuum extractor, tube cutting, robots (6-axis up to industrial 3 kg), safety glasses, etc.
