Cleaning ionizing air gun AG-03

flat nozzleergonomicnozzle

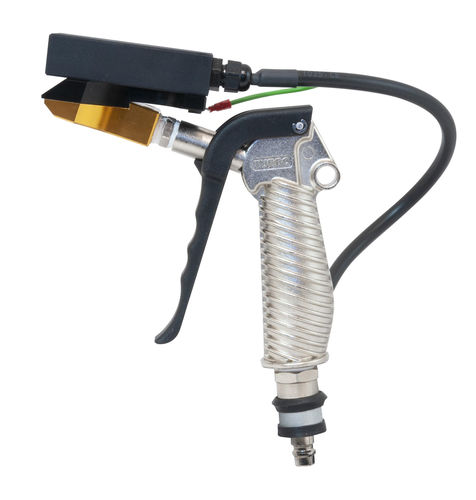

The AG-03 antistatic gun is flat air nozzle with small ionizing bar. The ionizing pin is shockless. When compressed air flows from the thin slot of the flat nozzle, volume is amplified by the ambient air. That compressed air pick up the ions (without unwanted discharging) and directs them on the surface of products. That is why it can very effectively eliminate electrostatic charges that are occurring on the surface of products. The combination of ionizing pin and flat nozzle in air gun achieves high static charge removal effectivity with very low noise level and with low air consumption. The air gun is ergonomic and robust. The gun is supplied with high voltage cable, which is available in different lengths and cable must be connected to the power source. Working distance: - 50-1500 mm Operating voltage: - 7000 V Power source: - AF2WR – PS1WR Pressure: - Max. 8 Bar Air consumption: - Max 500 Nl/min (at 6 bar) Noise level: - 68 dB in 30 cm, at 4 bar Ambient temperature: - 0° C – 70° C Length of cable with high voltage: - 3/5/10 m, additional lengths on request
