Compressed air nozzle IRJ-120

cleaningstainless steelrotating

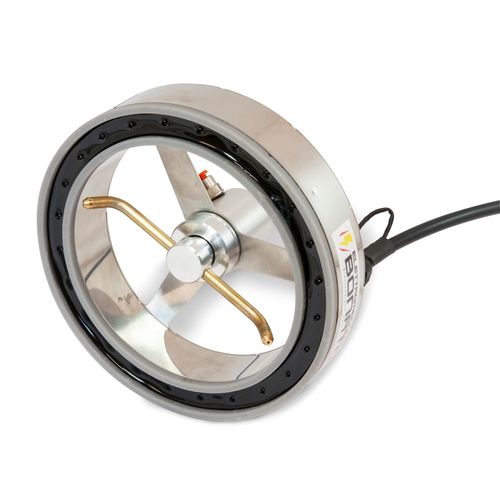

The IRJ-120 compressed air ionizing rotating jet has a dual function: cleaning the target surface and simultaneously eliminating electrostatic charges. The ionizing rotating jet ensures full coverage of the area to be cleaned and high efficiency, along with very low maintenance and a long service life. Multiple rotating units can be used in series to cover large areas; a mounting kit is available. Like other active antistatic equipment, the ionizing rotating jet must be connected to an antistatic power supply via a high-voltage cable and to compressed air via a 6 mm hose. The use of a 5-micron or smaller air filter is recommended to prevent the nozzle from coming into contact with impurities and moisture. Working distance - Up to 500 mm Operating voltage - 6,5 KV Power supply - AF2WR – AF4WR – APS2 – APS4 Pressure - Max 6 bar Compressed air consumption - at 4 bar, 84 lit/min Operating temperature - 0-60°C, 70% relative humidity Emitters - Stainless steel Air connection - 6 mm tube
