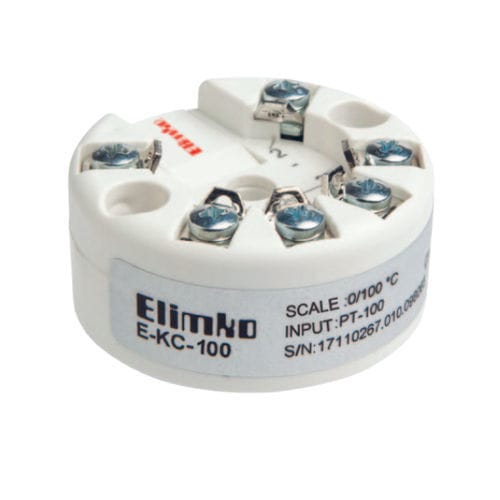

Temperature converter E-KC-100 series

for thermocouplesindustrial4-20 mA

E-KC-100 Series head type temperature converters are electronic units designed by using microcontroller, inside plastic roller, capable of being installed inside thermocouple or resistance thermometer head. They convert the thermocouple and resistance thermometer values into a standard 4-20mA current signal in all areas of the industry. Converter’s configuration can be easily set by the user as requested by using USB interface on PC without need for any supply by connecting to PC with E-PK700-I2 connection cable by the aid of E-Y-KC-100-V2 software loaded to PC. Accuracy Class 0.5 A/D Conversion 16 bit D/A Conversion 12 bit Operating Temperature -10°C ... 55°C Depolama Temperature -25°C ... 65°C Power Supply 10-30 V DC Resistance Thermometer: Pt-100 Memory EEPROM max. 105 writing Weight 30 gr
