Board-to-wire connector LC6-2.5 series
PCBflatfemale

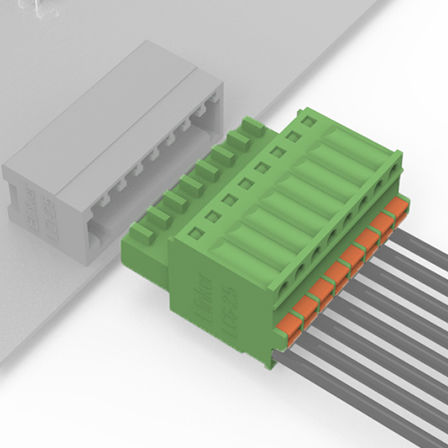

Board-to-wire connector - LC6-2.5 series - Elinker Electric - PCB / flat / female
Board-to-wire connector - LC6-2.5 series - Elinker Electric - PCB / flat / female
Board-to-wire connector - LC6-2.5 series - Elinker Electric - PCB / flat / female - image - 2
Board-to-wire connector - LC6-2.5 series - Elinker Electric - PCB / flat / female - image - 3
Add to favorites
Compare this product

Characteristics

Format
board-to-wire, PCB
Shape
flat
Connection type
female, flange, plug-in
Material
plastic
Other characteristics
small
Primary current

4 A

Min.: 4 A

Max.: 4 A

Voltage

160 V

Min.: 125 V

Max.: 160 V

Pitch

2.5 mm
(0.098 in)

Description

Connector, Male & Female Terminal blocks Part number: LC6-2.5 Center Spacing: 2.5mm Number of Poles: 2-24 Poles Approvals: UL, CE Certified, RoHS Comply SPECIFICATIONS: IEC: 160 V / 4 A / 0.5 mm2 UL: 125 V / 4 A / AWG 28-20 Wire Size: #26-12 AWG Cross-Section Area: 2.5 mm² Stripping Length: 10 mm Wire Entry: Front Housing Material: Polyamide, 94VO Contact Material: Brass Tin Plated Operating Temperature: 105° C (221° F) max., -40° C(-40° F) min. Our Services: High quality Reasonable Prices Fast shipping Accept small orders Tooling development OEM service provided QC Team: QC team with more than 30 professional and technical personnel who ensure 100% products checking. Material:Rhodia PA66 Semi-finished products inspection:Product inspection before 100% finished. Such as Visual Inspection, Leak Testing, Comprehensive Safety Test and so on. Finished Product Inspection: Quality and property test before products are packed and loaded.
