DIN rail-mounted terminal block LC19U-5.08
screw connectionplastic

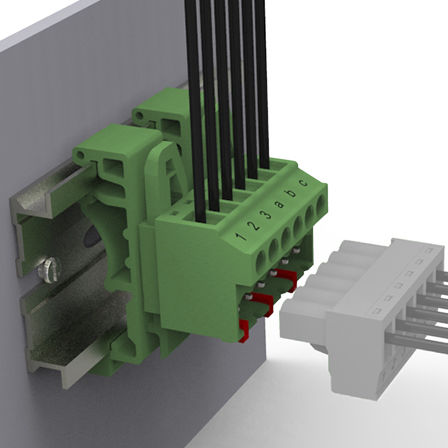

DIN rail-mounted terminal block - LC19U-5.08 - Elinker Electric - screw connection / plastic
DIN rail-mounted terminal block - LC19U-5.08 - Elinker Electric - screw connection / plastic
DIN rail-mounted terminal block - LC19U-5.08 - Elinker Electric - screw connection / plastic - image - 2
DIN rail-mounted terminal block - LC19U-5.08 - Elinker Electric - screw connection / plastic - image - 3
DIN rail-mounted terminal block - LC19U-5.08 - Elinker Electric - screw connection / plastic - image - 4
Add to favorites
Compare this product

Characteristics

Mounting
DIN rail-mounted
Connection
screw connection
Other characteristics
plastic
Cross-section

Min.: 2.5 mm²
(0 in²)

Max.: 2.5 mm²
(0 in²)

Current

Min.: 15 A

Max.: 20 A

Nominal voltage

Min.: 300 V

Max.: 320 V

Description

Part number: LC19U-5.08 Center Spacing: 5.08mm(. 20") Number of Poles: 2-24 Poles Approvals: UL, CE Certified, RoHS Comply Salt spray test 72 hours Flame retardant rating V0 Prevent error of connection Custom color Custom customizable the pad printing or label Specifications: IEC: 320V/20A UL: 300V/15A Cross section area: 2.5mm2 Wire size: #24-12AWG Housing material: polyamide, 94VO Contact material: brass tin plated Termination: screw Operating temperature: 105°C (221°F) max., -40°C (-40°F) min. Our Services: High quality Reasonable Prices Fast shipping Accept small orders Tooling development OEM service provided QC Team: QC team with more than 30 professional and technical personnel who ensure 100% products checking. Material:Rhodia PA66 Semi-finished products inspection:Product inspection before 100% finished. Such as Visual Inspection, Leak Testing, Comprehensive Safety Test and so on. Finished Product Inspection: Quality and property test before products are packed and loaded.
