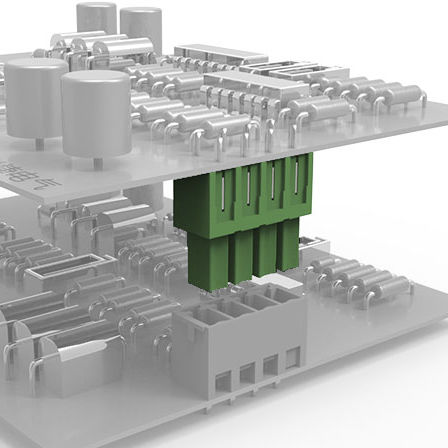

Board-to-board connector LC12V-3.5
PCBmalemultipole

board-to-board connector
board-to-board connector
board-to-board connector
board-to-board connector
Add to favorites
Compare this product

Go to the Elinker Electric website for more information

Characteristics

Format
board-to-board, PCB
Connection type
male
Electrical characteristics
multipole
Material
polyamide, brass
Domain
industrial
Primary current

Min.: 8 A

Max.: 10 A

Voltage

Min.: 160 V

Max.: 300 V

Pitch

3.5 mm
(0.138 in)

Description

Part number: LC12V-3.5 Center Spacing: 3.5mm(. 20") Number of Poles: 2-24 Poles Approvals: UL, CE Certified, RoHS Comply Specifications: IEC: 300V/10A UL: 160V/8A Housing material: polyamide, 94VO Contact material: brass tin plated Operating temperature: 105°C (221°F) max., -40°C (-40°F) min. Our Services: High quality Reasonable Prices Fast shipping Accept small orders Tooling development OEM service provided QC Team: QC team with more than 30 professional and technical personnel who ensure 100% products checking. Material:Rhodia PA66 Semi-finished products inspection:Product inspection before 100% finished. Such as Visual Inspection, Leak Testing, Comprehensive Safety Test and so on. Finished Product Inspection: Quality and property test before products are packed and loaded. Flame retardant rating V0 Prevent error of connection Custom color Custom customizable the pad printing or label
Go to the Elinker Electric website for more information
