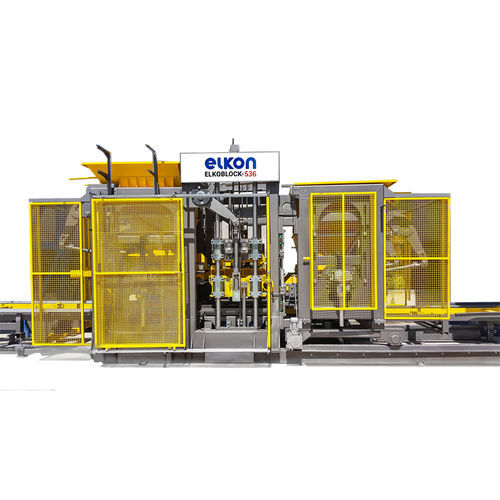

Concrete block making machine Elkoblock-S36

ELKOBLOCK-S36 offers superior performance and high production capacity. Optimum handling of the production pallets is provided for curing and packaging with steel racks. This way, an optimum performance can be obtained during the production, curing, additional processing and packaging. Pallets with wet products are placed onto the 10-level steel racks via a special elevator and these racks are taken into the curing area by a forklift. After curing process, steel racks are placed in the pallet lowerator. Fully-automatic servo-drive ELKON cubing robot places the final products onto the delivery pallets and inverted production pallets are fed into the concrete block making machine via conveyor. Thanks to its highly flexible, user friendly software, ELKOBLOCK-S36 Concrete Block Making Machine provides a high-quality, quick and easy production. Control system, power board and hydraulic system are placed in the operator’s cabin. GENERAL FEATURES Capacity (10 hours production): ~1400 m2 concrete paver Block Height: 50-400 mm Forming Area: 1240 x 1000 mm Pallet Size: 1400 x 1100 mm Back Concrete Hopper Volume: 2100 l Face Concrete Hopper Volume: 2100 l CONTROL SYSTEM and POWER BOARD Operator Cabin: Optional Electrical Components: SIEMENS-GERMANY Automation System: Different Options According to Configuration
