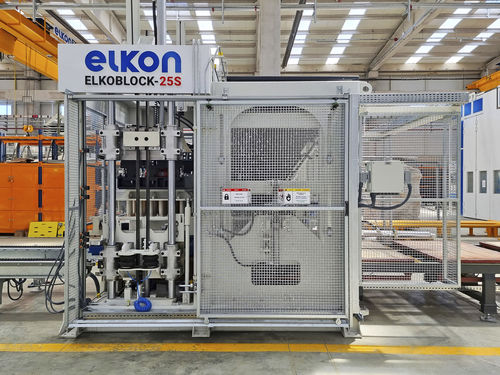

Concrete block making machine Elkoblock-25

automatic

Capacity (10 hours production): ~600 m² concrete paver or 10.000 pcs 20x40x20 cm hollow block - For production of blocks from 60 mm to 300 mm - Forming area: 1035x860 mm - Pallet size: 1200x950x180 mm - Total install power: 52 kW Technical Specifications; HYDRAULICS - High performance reliable hydraulic system Brand: REXROTH (GERMANY) - 40 l/min capacity oil cooler with fan - Proportional valve controls for changing production speed depending on product VIBRATION - Vibrators brand are ELKON - Tamper head vibration motors: 2,1 kW x 2 units - Vibrating table vibration motors: 4 kW x 2 units - Vibration force: 38 kNx2 units DESIGN - Heavy duty design, robust machine structure and certified high grade steels used in production ensures highest durability and longest life time - Four columns design for tamper head - High grade steel used in important places ensures optimum performance for many years. - Exchangeable wear plates (DOMEX S700) - 1500 liters concrete hopper - Electrical control manual level indicator on concrete hopper - Fully comply with CE safety regulations - Galvanized safety guards around all required points CONTROL SYSTEM & POWER BOARD - Semi automatic control from user friendly automation system which includes SIEMENS touch panel and SIEMENS PLC - All electrical components inside power board are SIEMENS-GERMANY brand. Empty Pallet feeding hopper and conveyor is included. Pallet Conveyor for Wet Products is included. Pallet Elevator for pallets with legs is included
