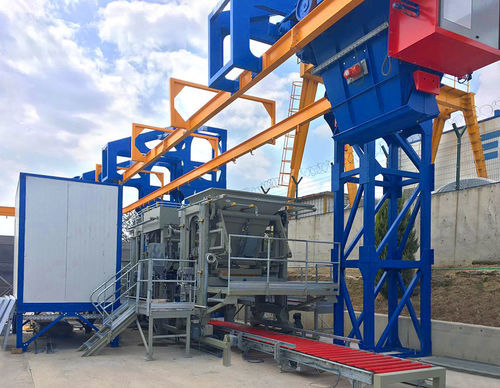

Concrete block making machine ELKOBLOCK-36M

manualautomaticsemi-automatic

ELKOBLOCK-36M is a multilayer concrete block and paver making machine designed for high-capacity production of interlocks, curbs and solid blocks. The machine integrates a certified high-grade steel frame with a four-column system and chrome-plated guides for the tamper head to ensure consistent operation under continuous production conditions.

Key product overview

• Designed to produce a wide range of concrete products: interlocking pavers, curb stones, solid blocks and special shapes.
• Estimated production: ~1000 m2 of concrete pavers per 8-hour shift (depending on product and configuration).
• Fast feeding and mold change: shifting feeding grid within the backing concrete hopper, adjustable feed-drawer height and quick mold-change capability.
• Modular handling: supports manual to fully automated pallet handling depending on selected configuration.

General features

• Forming area: 1240 x 1000 mm
• Cycle time: 24–33 s
• Block height range: 50–500 mm
• Stacking height: 640 mm
• Pallet size: 1270 x 1050 mm
• Back concrete hopper volume: 2100 L
• Face concrete hopper volume: 2100 L

Control system and power board

• Total installed power: 64 kW
• Operator cabin: included
• Electrical components: SIEMENS (Germany)
• Automation: SIEMENS S7-300 PLC with 15" SIEMENS TP 1500 touch panel

Handling / Configurations

• BASIC configuration: Production pallets with legs are fed into the machine at the pallet feeding point; finished wet pallets are removed manually. Supports automatic and semi-automatic production modes via the control panel.
• BASIC PLUS configuration: Wet pallets exit on a conveyor, can be stacked up to 10 levels by elevator and transported to curing by forklift; after drying pallets are fed into the lowerator and final products moved to transportation pallets on the conveyor.
• PLATINUM configuration: Uses steel racks for handling production pallets. Wet pallets placed on 10-level steel racks via elevator; racks moved to curing by forklift and then placed in pallet lowerator; includes fully automatic packaging robot to place final products onto transport pallets and return inverted production pallets into the machine.
• PREMIUM configuration: Fully automatic solution using automatic finger-car robotic transportation for production, transport, curing and piling. Pallets can be stacked up to 16 levels and handled by finger-car robot; process includes brushing, inversion and automatic refeeding for continuous production.

Technical specifications

• Model: ELKOBLOCK-36M
• Forming area: 1240 x 1000 mm
• Pallet size: 1270 x 1050 mm
• Production capacity (8 h): ~1000 m2 (pavers)
• Cycle time: 24–33 s
• Block height: 50–500 mm
• Stacking height: 640 mm
• Back concrete hopper volume: 2100 L
• Face concrete hopper volume: 2100 L
• Total installed power: 64 kW
• Operator cabin: included
• Electrical components: SIEMENS (Germany)
• Automation: SIEMENS S7-300 PLC with 15" SIEMENS TP 1500 touch panel
• Construction: Certified high-grade steel frame, four-column system with chrome-plated guides for tamper head
• Feeding & tooling: Shifting feeding grid in backing hopper, adjustable feed-drawer height, fast mold change
