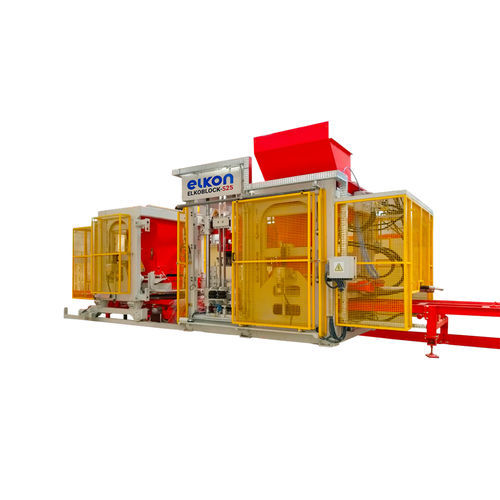

Concrete block making machine Elkoblock-S25

Capacity (10 hours production): ~800 m² concrete paver or 12.000 pcs 20x40x20 cm hollow block - For production of blocks from 60 mm to 300 mm - Forming area: 1035x860 mm - Pallet size: 1200x950 mm HYDRAULICS - High performance multi circuit hydraulic system provides highest production capacity and efficient operation of machine - Brand: REXROTH (GERMANY) - Hydraulic system is located in a separate cabin. - 40 l/min capacity oil cooler with fan - Maximum working pressure 180 bar - Proportional valve controls for changing production speed depending on product VIBRATION - Tamper head vibration motors: 2,1 kW x 2 units, Brand: OLI WAM - Vibrating table vibration motors: 4 kW x 2 units, Brand: ELKON DESIGN - Heavy duty design, robust machine structure and certified high grade steels used in production ensures highest durability and longest life time - Four columns with chrome-plated guides for tamper head - Special steel used in important places ensures optimum performance for many years. - Quick mold changing - Exchangeable wear plates - Exchangeable joint bushes - 1500 liters concrete hopper for backing and 1250 liters concrete hopper for hard face concrete with hydraulic discharge control - Shifting feeding grid inside backing concrete feed drawer for high speed feeding - Min.-max. level indicator on concrete hoppers - Automated height adjustment for feed drawer - Fully comply with CE safety regulations - Safety guards around all required points CONTROL SYSTEM & POWER BOARD - Operator cabin with air condition - Fully automatic control from user friendly automation system which includes 15” SIEMENS
