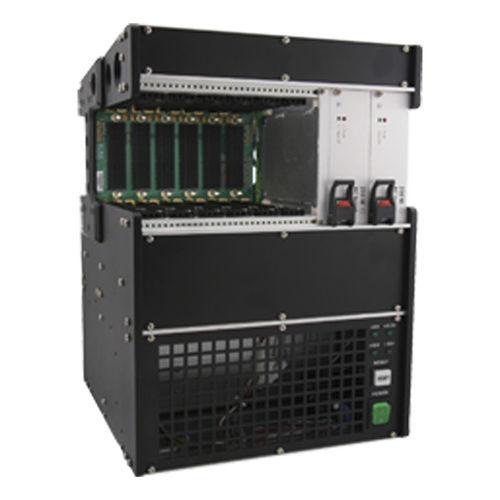

The Type 39 E-Frame (Short), test platform supports 3U, VPX development. With a rugged aluminum construction, the Type 39 E-frame is 9U overall to hold 3U cards. Available in compact (49HP) and full (84HP) for mounting 3-15 slots at 1" pitch.
Product Features
Half width version (49HP)
Fixed and plug mount PSU options: 90-264VAC. Front accessible test points and monitoring LEDs for| +3.3V, +/-5V, +/-12V, +/- 24V, and +/- 48VDC. The Type 39 E-Frame features high performance 150cfm, fans under the card cage.
Holds 5 front 3U x 160mm cards
RTM mounting (rear transition module)
3U 5-slot VPX power and ground backplane
Pluggable 250Watt VITA 62 power supply
High performance cooling via front and rear mount fan trays
Rear AC power input module with GND stud
System monitoring with RS232 interface (optional)
Front accessible test points and monitoring LEDs for: 3.3V, ± 5V, ±12V, ± 24V & ± 48V
