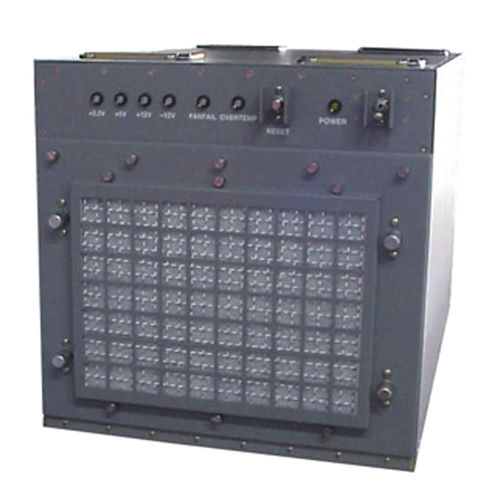

Rack-mount chassis 12R2-9U-PC

19"9U84 HP

The 9U, 12R2 is designed to meet the harsh environment of shipboard, airborne, and ground mobile applications per MIL-STDs. Shock-isolated versions attenuate 25G shock to the chassis to less than 10Gs at the card cage. Product Features ISA/PCI compatible Designed to meet MIL-STD-5400, MIL-STD-810F, MIL-STD-46IE, MIL-STD-704E, MIL-STD-1275A, MIL-STD-167, MIL-STD-901D. Highly configurable, the unit can be ordered with choice of VME, VME64x, VXS, VPX, CPCI or MicroTCA, fixed or shock isolated card cage 9U H, standard depth 25" 4-20 slot ISA/PCI compliant cards, top load Front to rear evacuative cooling (350 LFM @ .1" H20) Front mounted LEDs for| voltage monitoring, fan fail and over temp 500 to 1200 watt PSU options 19" rackmount or bottom flush mount. Mounting for 2 x 5.25"HH and 2 x 3.5"devices Custom rear I/O patch panel (rear I/O cards optional) Input options: 90-264VAC Fixed PSU, 47-500 Hz, 28/48VDC
