Wall-mount enclosure SRS-12xx

flange3Upole-mounted

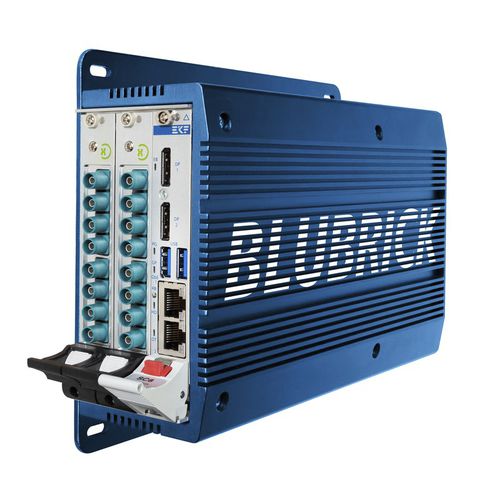

The SRS-12xx-BLUBRICK is a rugged CompactPCI Serial embedded system for applications operating in harsh environments. Turn-key configured with a CPU and up to two I/O or SSD cards. Product Features Rugged aluminum enclosure for use in harsh industrial environments (automotive, railway, mining, industrial) Ships with either 2- or 3-slot CompactPCI Serial backplane and a DC PSU with option for AC Accommodates up to three 3U cPCI Serial cards - 1 x CPCI Serial system slot (CPU card) - Up to 2 x CompactPCI® Serial peripheral slots (I/O and mass storage cards) - Optional 1 x system slot (8HP CPU card) +1 x peripheral slot Profile dimensions 260 x 73 x 150.5 mm (mounting flange 260 x 190.5 mm) Standard 100-240VAC, P=60W. Railway: 14-154VDC, P=50W, EN50155. Automotive/industrial: 10-36VDC, P=75W DC Depending on board set consumption: forced air or conduction cooling Application examples: Industrial computing (IIoT), edge/fog; Router, gateway, networking, data acquisition and acceleration, kiosk systems; automotive, autonomous cars, infotainment; railway (EN50155)
