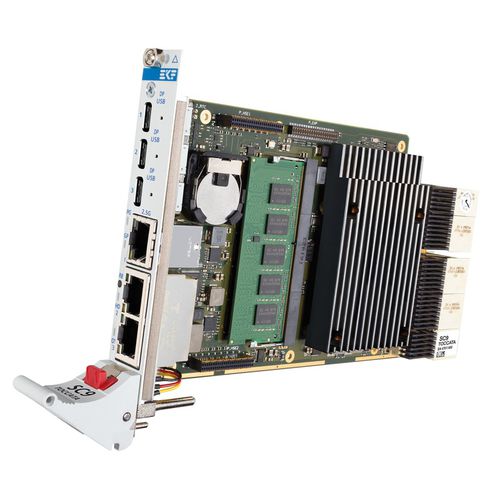

PICMG SBC EKF-SC9-TOCCATAIntel® XeonINFINEON11th Generation Intel® Core™
Add to favorites
Compare this product
Characteristics
- Form factor
- PICMG
- Processor
- INFINEON, Intel® Xeon, 11th Generation Intel® Core™
- Extension slot
- SATA, PCI Express, CompactPCI
- Connectivity
- 2.5 GbE, USB, USB 3.2, CPC, RJ45, Ethernet
- Other characteristics
- industrial, 3U
Description
SC9-TOCCATA is a rich featured high performance 4HP/3U CompactPCI® Serial CPU board, equipped with an Intel® 11th Generation XEON® Processor (Tiger Lake H45 platform) for demanding industrial applications.
Product Features
Form factor single size Eurocard (board dimensions 100x160mm2)
Mounting height 3U
Front panel width 4HP (8HP/12HP assembly with optional mezzanine side card)
Front panel I/O connectors for typical system configuration (3 x 10Gbps USB Type-C DP Alt Mode, 3 x 2.5Gbps Ethernet RJ45)
Backplane communication via PCI Express® Gen3, SATA 6G, USB 3.2, Gigabit Ethernet
Integrated Intel® Xe Gen 12 graphics engine, 4 displays
Total memory encryption - hardware based (Trusted Platform Module SLM9670, Infineon Optiga™ cryptographic processor)
