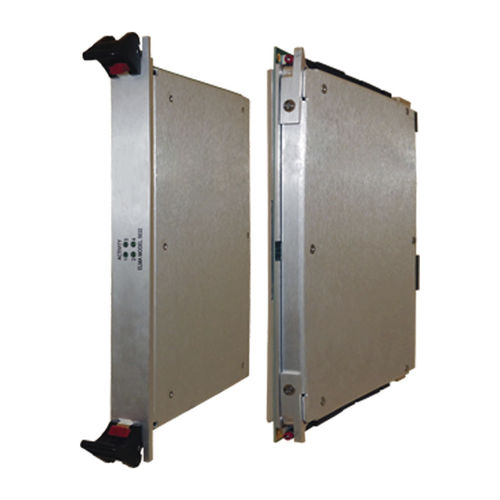

Storage module 5630

The 5632 & 5633 support multi-terabyte storage in one 6U slot with capacities current solid state drive technologies. Four on-board SATA drives connect via the backplane via SATA controller to create a high capacity multi-slot storage array. Product Features Four solid state drives in a single slot. The 5632/3 carrier card allows for storage system expansion so it can scale to meet increasing needs. Supports up to SATA III 6Gb/s interface speeds when used in conjunction with a SATA III controller. Choose the latest solid state drive technology for your application 6Gbps data rates are supported (external controller dependent) Standard 6U x 5HP x 160mm OpenVPX form factor Drive activity LEDs media dependent Extended temperature operation from -40°C to +75°C Conduction or air cooled option Optional rear transition module Create RAID arrays using OS supported RAID software applications.
