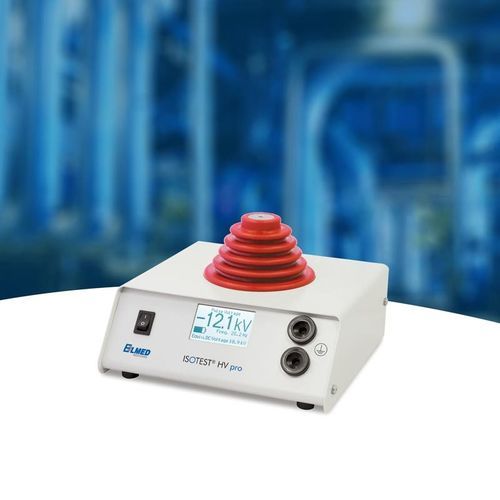

High-voltage voltmeter ISOTEST® HV pro

LCDportableDC

High Voltage Pulse Voltmeter for portable ISOTEST® Holiday Detectors ISOTEST® HV pro

• measurement of the ISOTEST® pulsed high voltage of portable holiday detectors ISOTEST® inspect pro, and previous models ISOTEST® inspect 8.0 / 35 and ISOTEST® 4S / 4Splus
• measuring range 2.50 – 35.0 kV
• easy to operate
• portable due to battery operation
• incl. carrying case

Art.-No. 0190000141


Features

The compact and robust high voltage pulse voltmeter ISOTEST® HV pro allows the measurement of pulsed test voltages for the portable holiday detectors ISOTEST® inspect pro, and previous models ISOTEST® inspect 8.0 / 35 and ISOTEST® 4S / 4Splus. The measurement result can be read easily on the display at the front of the device. The battery-powered device comes with a carrying case and a traceable works calibration.

Displayed measurement values

• pulsed test voltage
• equivalent DC voltage value *
• repetition frequency
• battery level indication

* The pulsed voltages used in ISOTEST® holiday detectors are equivalent to the corresponding DC voltage values. The pulsed voltage values were determined based on extensive measurement series conducted under application-related conditions according to scientific criteria.


Technical data

Measuring range
2.50 – 35.0 kV pulse voltage
(Pulse parameters: negative, predominantly unipolar pulses,
post-pulse oscillation up to 1 ms is permissible.)
Resolution of the value
0.01 kV (2.50 – 9.99 kV),
0.1 kV (10.0 – 35.0 kV)
Compatible holiday detectors
ISOTEST® inspect pro,
ISOTEST® inspect 8.0 / 35,
ISOTEST® 4S / 4Splus
Accuracy
± 5 % ± 2 cts
Display
illuminated LC display
Power supply
4 pcs. mignon standard batteries AA / LR6
Power consumption
approx. 50 mA
Housing dimensions (W x H x D)
200 x 120 x 200 mm
Weight (without accessories)
approx. 1.7 kg
Operating temperature
0° ... +40° C
Storage temperature
-20° ... +50° C


Revisions in the course of technical progress reserved.
