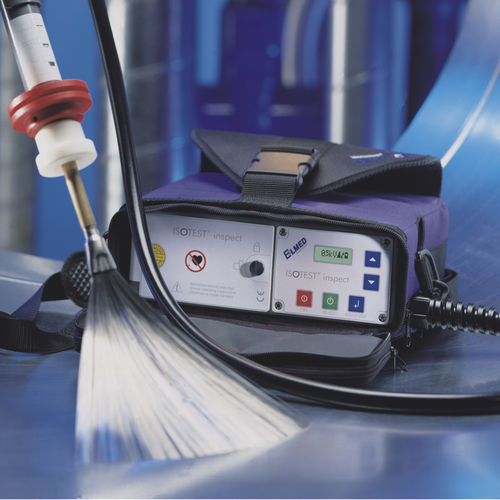

Coating holiday detector ISOTEST® inspect 8.0/35

brushportableLCD display

Holiday Detector ISOTEST® inspect
... safe and sure

voltage 0.5 - 8.0 kV, 0.5 kV steps (inspect 8.0)
or 5 - 35 kV, 0.1 kV steps (inspect 35)

■ convenient operation via menu control and LC display
■ broad functionality – related to application
■ sensitivity adjustment via menu
■ patented automatic regulation
■ power reserves for the highest requirements
■ self-calibrating instrument
■ testing of dirty, damp and therefore slightly conductive surfaces
■ three grounding possibilities, including capacitive grounding
■ no static charge of the text object
■ rapid battery change
■ low material stress thanks to short test pulses
■ safe grounding by automatic monitoring of the earth plug
■ emergency-off safety mode – menu driven

ISOTEST® inspect 8.0 (0.5 - 8.0 kV, 0.5 kV steps)
Art.-No. 0118100011

ISOTEST® inspect 35 (5 - 35 kV, 0.1 kV steps)
Art.-No. 0113510001


Features

ISOTEST® inspect 8.0
Test voltage 0.5 - 8.0 kV, adjustable in steps of 0.5 kV
The holiday detectors version ISOTEST® inspect 8.0 have been specially developed for testing sensitive coatings like FBE, enamel, epoxy, Halar etc. An intelligent signal analysis makes it possible to test completely coated parts. The menu-driven sensitivity of the instrument guarantees exact test results.

ISOTEST® inspect 35
Test voltage 5 - 35 kV, adjustable in steps of 0.1 kV
Performance for every application. Energy reserves for the most demanding test situations, thanks to impulse voltage technology. The ISOTEST® inspect 35 can cope with large diameter, humid, dirty and even only slightly conductive surfaces.

Functions
■ sensitivity adjustment via menu
■ acoustic and visual indication of porosity
■ pore counter
■ overload warning
■ battery level indicator
■ multilingual menu
■ hours run meter
■ emergency-off safety mode – menu driven



Technical data

Test voltage
0.5 - 8.0 kV, adjustable in steps of 0.5 kV (inspect 8.0)
5 - 35 kV, adjustable in steps of 0.1 kV (inspect 35)

Voltage form
unipolar high voltage pulses

Pulse duration
10 μs

Pulse repetition frequency
25 Hz

Operation and display via
keypad and LCD (inspect)

Acoustic signals
up to 86 dB

Power Supply
lead acid rechargeable battery 6 V / 4.5 Ah,
battery life up to 9 hours

Dimensions (incl. instrument bag)
280 x 270 x 120 (mm)

Weight (incl. handle and instrument bag)
4.5 kg

Weight of rechargeable battery
0.9 kg

Length of high voltage cable to handle
1.5 m

Type of protection
IP52

Operating temperature
0 °C … +50 °C

Storage temperature
-20 °C … +50 °C



Revisions in the course of technical progress reserved.
