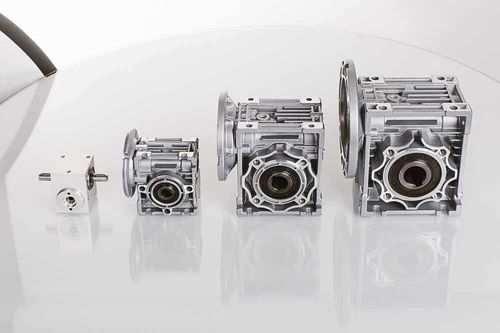

Worm gearhead NM seriesright anglehollow-shaft10 - 20 Nm
Add to favorites
Compare this product
Characteristics
- Type
- worm
- Shaft orientation
- right angle
- Shaft configuration
- hollow-shaft
- Torque
- 10 - 20 Nm, 20 - 50 Nm, 100 - 200 Nm, 50 - 100 Nm, 200 - 500 Nm
- Applications
- for DC motors, for stepper motors
Description
Our product range of worm gear units includes miniature series as well as IEC-standard sizes with torque up to more than 400Nm. Optionally, spur or planetary gearheads can be integrated as preliminary stages to achieve reductions of 2000:1.
• Hollow shaft or shaft design
• Centre distance 12...90mm
• Optional with spur gear pre-stage for higher reduction ratios and better efficiency
