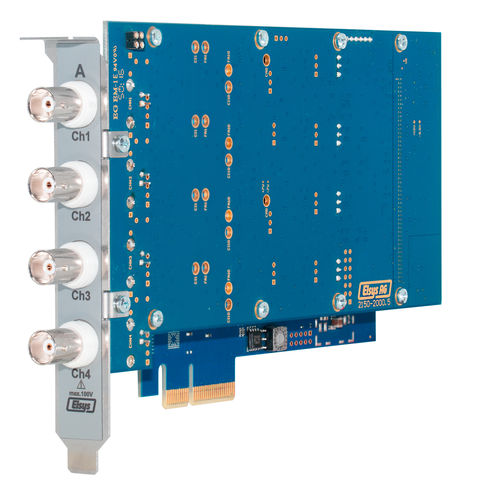

PCI Express data acquisition card TPCE-12016-4S
4-channel

PCI Express data acquisition card
PCI Express data acquisition card
Add to favorites
Compare this product


Characteristics

Bus standard
PCI Express
Input/output signal
4-channel

Description

* 4-channel single ended * High-precision typ. 0.03 % of FSR * 100 mV to 100 V input range * 0 to 100 % offset * Very low input noise * High differential CMRR * 64 MS memory per channel * up to 1024 channels The Elsys TPCE data acquisition (DAQ) cards are high-precision and high-resolution digitizers with sophisticated features such as advanced trigger mode, continuous data acquisition mode, differential inputs, digital input lines (Markers) and ICP coupling for powering piezo sensors. An engineer can either be efficient the very first day by taking advantage of the powerful Elsys Transient Recorder application software TranAX 3 or start the development of a custom software based on the C++/C# driver with sample programs for Windows and Linux. Especially for ATE and integrated system applications there is an IVI Scope Class driver available.
