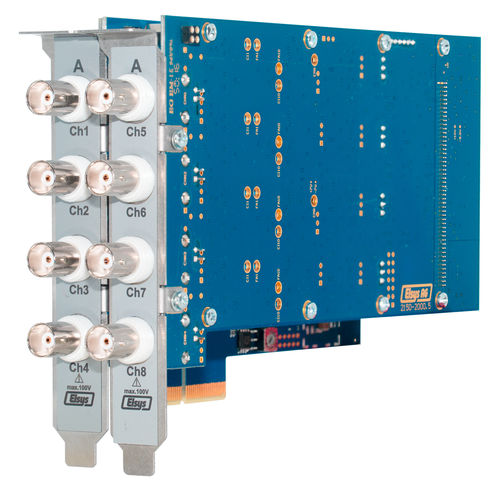

PCI Express data acquisition card TPCE-2016-8S

PCI Express data acquisition card
PCI Express data acquisition card
Add to favorites
Compare this product


Bus standard
PCI Express
Input/output signal
analog, 8-channel


High speed, high precision 8-channel data acquisition card, 20 MS/s sampling rate per channel, up to 128MS on board memory, optional Anti-Aliasing filter and ICP/IEPE power module. This device has a single recording mode, and free running scope mode with auto trigger functionality. This also comes with multi-block recording or the segmented memory, and continuous data recording to the hard disk or streaming. This also offers an event controlled recording or ECR mode that gives an automatic recording, without dead-time and dual time base.
