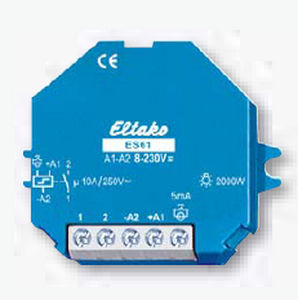

Remote switch ES61-UC

1 NO contact potential free10A/250V AC. Incandescent lamp load up to 2000W. No standby loss. For installation. 45mm long, 55mm wide, 18mm deep. State-of-the-art hybrid technology combines advantages of nonwearing electronic control with high capacity of special relays. Either universal control voltage 8 to 230 V UC at the control input +A1/-A2 or 230 V with a glow lamp current up to 5mA at the control input (L)/-A2(N). Using two potentials simultaneously at the control inputs is not permitted. Very low switching noise. No permanent power supply necessary, therefore no standby loss. By using a bistable relay coil power loss and heating is avoided even in the on mode. The relay contact can be open or closed when putting into operation. It will be synchronised at first operation.
