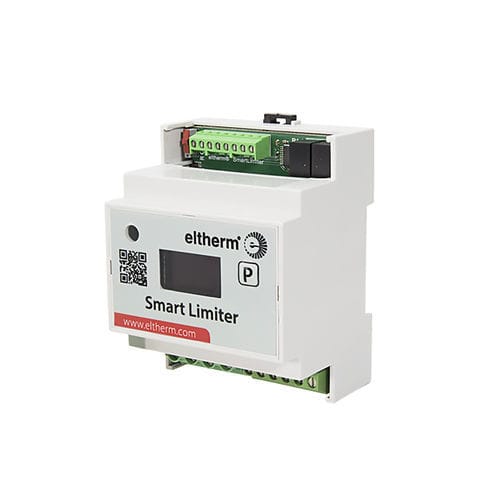

Electronic temperature limiter 0634L00

with LED displayintelligentfor process monitoring

The electronic temperature limiter "Smart Limiter" is used in potentially explosive areas when using an electrical heat tracing system with DIN rail mounting. It is characterised by its "smart" switching behaviour, i.e. it only switches off at the set maximum temperature if an excess temperature is measured and the system's temperature controller has not switched off. In practice, this means, for example, that the system can be steam flushed without having to reset the limiter afterwards. Technical Benefits OLED display high switching capacity convenient operation via WLAN two-pole switch-off for operations with ELTF-PTEx sensors Technical Data Operating / control voltage 100...240 VAC, 50/60 Hz Switching capacity 30 A Power consumption max. 8 W Switching point accuracy +- 1K Display OLED, 13x24 mm Housing 70 (4 DU) x 90 x 60 mm (BxHxT) Weight approx. 0.2 kg
