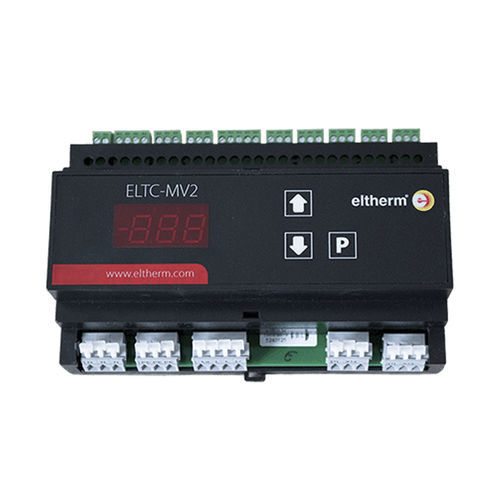

Temperature controller with LED display ELTC-MV2

programmableheatingprocess

The temperature controller Moduvise is a multifunctional device with 15 different control functions and a multi-voltage power supply. It can therefore be used for almost all heat tracing applications and highly complex process temperature requirements can be realised. The temperature is recorded either via a Pt100 2- and 3-wire, via thermocouples J and K or via a standard signal. Due to the wide range of connection options for temperature recording, the ELTC-MV2 can also be used as a replacement for existing systems. Technical Benefits Multi-voltage power supply: 100V..277VAC, +/-10%, 50/60Hz, 24VDC, +/-5% 15 different control functions: e.g. two-point control with fixed setpoint, control proportional to ambient temperature with external setpoint or limiter Meets requirements for operation with ELTF PTEx sensors Use of several sensor types (Pt100 2-wire or 3-wire, thermocouple type J or type K, standard signal) for temperature detection Soft-start function Current display via P04 Technical Data Operating / control voltage 100V..277 VA C, +/-10%, 50/60Hz, 24 V DC, +/-5% Power consumption 5.5 VA Switching point accuracy ± 1K, ± 2 digits (-50...400°C) Display LED, red, 11 mm, three-wire Housing 153 (8.5 TE) x 93 x 59 mm (WxHxD) Weight approx. 0.8 kg
