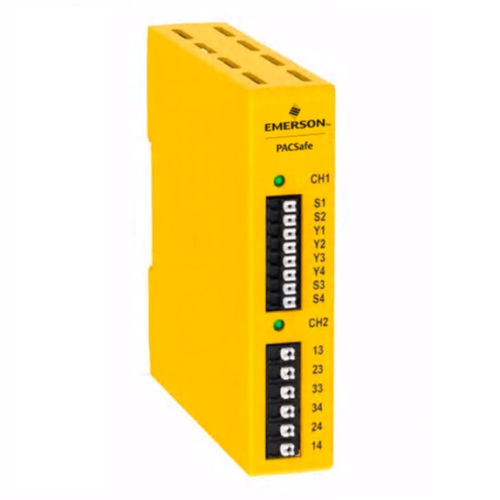

Series interface module IC225SRD130

power

PACSafe Interface Modules provide isolated safety output contacts for light curtains and other primary safety devices with External Device Monitoring (EDM). Featuring 6 amp hard contact outputs, these modules are an integral part of a reliable, fast, and complete safety solution. Features 6A hard contact outputs 24 VDC operation 22.5 mm (0.9in) DIN-rail mountable housing Standard push-in spring clamp connectors for quick, easy, toolless installation Specifications Device Type Safety Relay Safety Module Type Interface Module Dimensions 97.5h x 100w x 22.5d mm Relative Humidity 90 percent at 50C Max Operating Temperature 50C Input Operation Simultaneous or Concurrent Number of Safe Inputs 1 Dual (Typ controlled by an OSSD Pair) Number of Safe Inputs Qty 2, 24VDC Safety Inputs (Solid-State) 50 mA at 24 VDC Independently Controlled Safe Outputs 1 Safe Output Rating Relay - 6A at 240VAC/24VDC Mechanical Life 20 million operations Power Consumption 0.1A Response Time 20mS (max.) Supply Voltage 24 VDC Vibration 10-55 Hz at 0.35 mm Electrical Life 1,000,000 cycles at 450 VA IP Rating IP20 PL Rating e Safety Category Rating 4 SIL Rating 3 Output Configuration 3 normally open
