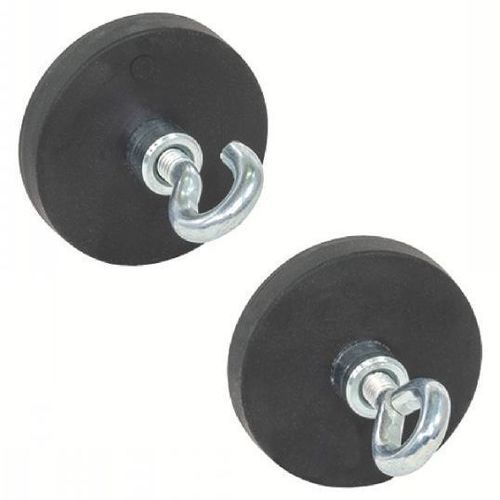

NdFeB magnet 41-73 series

neodymium-iron-boronringdisc

Description
- Zinc-plated steel body.
- Black elastomer rubber protection (TPE), 80 Shore A.
- Magnetic material: neodymium-iron-boron (NdFeB).
- Maximum operating temperature: 80 °C.
- Rubber coating protects delicate surfaces and, due to its high coefficient of friction, provides increased lateral retention forces.

Order example
ORDER EXAMPLE: Reference 41-730-22

Variants / Reference table
Reference | Version | d1 (mm) | h1 (mm) | h2 (±3) (mm) | Force (N)
41-730-22 | With hook | 22 | 6 | 30 | 58
41-730-31 | With hook | 31 | 6 | 30 | 69
41-730-43 | With hook | 43 | 6 | 29 | 100
41-730-66 | With hook | 66 | 8.5 | 40 | 250
41-731-22 | With ring | 22 | 6 | 30 | 58
41-731-31 | With ring | 31 | 6 | 30 | 69
41-731-43 | With ring | 43 | 6 | 28 | 100
41-731-66 | With ring | 66 | 8.5 | 38 | 250

Notes
- Conforms to standard GN 51.10

Characteristics / Technical specifications

• Body material: zinc-plated steel
• Protection: black elastomer rubber (TPE), hardness 80 Shore A
• Magnetic material: neodymium-iron-boron (NdFeB)
• Maximum operating temperature: 80 °C
• Function: flat magnet with option of hook or ring and rubber protection to safeguard surfaces and increase friction
• Available references: 41-730-22 / 41-730-31 / 41-730-43 / 41-730-66 (with hook) and 41-731-22 / 41-731-31 / 41-731-43 / 41-731-66 (with ring)
