Manually switched permanent lifting magnet 41-92 series
for sheet steelneodymiumcircular

Manually switched permanent lifting magnet - 41-92 series - Emile Maurin Eléments Standard Mécaniques - for sheet steel / neodymium / circular
Manually switched permanent lifting magnet - 41-92 series - Emile Maurin Eléments Standard Mécaniques - for sheet steel / neodymium / circular
Manually switched permanent lifting magnet - 41-92 series - Emile Maurin Eléments Standard Mécaniques - for sheet steel / neodymium / circular - image - 2
Manually switched permanent lifting magnet - 41-92 series - Emile Maurin Eléments Standard Mécaniques - for sheet steel / neodymium / circular - image - 3
Add to favorites
Compare this product
Go to the Emile Maurin Eléments Standard Mécaniques website for more information

Characteristics

Type of commutation
manually switched
Applications
for sheet steel
Options
neodymium
Shape
circular
Lifting force

Max.: 0.1 kN

Min.: 0 kN

Description

Product

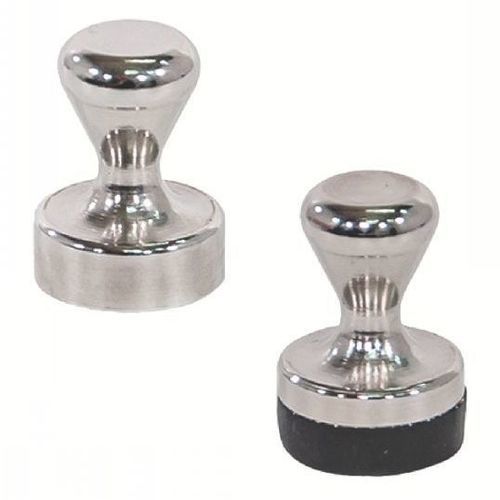

  • Flat magnet with steel handle, model 41-92.
  • Nickel-plated steel body.
  • Neodymium-iron-boron (NdFeB) magnet.
  • Optional elastomer TPE base (black or white), 80 Shore A.


Materials
  • Body: nickel-plated steel.
  • Magnet: NdFeB.
  • Base (if fitted): TPE elastomer, black or white, 80 Shore A.


Usage
  • Maximum operating temperature: 80 °C.
  • The version with TPE base protects sensitive surfaces and reduces noise on contact.
  • Complies with standard GN 53.4.


Order examples / Variants
Reference: 41-921-12 (without base) — 41-922-12 (with base).

Documents and resources
  • Series 41 technical datasheet (product documentation available as PDF).


Characteristics / Technical specifications
  • Model: 41-92.
  • Available versions: Without base (ref. 41-921-12) and With base (ref. 41-922-12).
  • Without base (41-921-12) — d1: 12 mm; d2: 9 mm; h1: 16 mm; h2: 4.5 mm; h3: 3 mm; Force: 55 N.
  • With base (41-922-12) — d1: 12 mm; d2: 9 mm; h1: 17.5 mm; h2: 6 mm; h3: 3 mm; Force: 16 N.
  • Materials: nickel-plated steel body; NdFeB magnet; TPE base (black or white) 80 Shore A.
  • Maximum operating temperature: 80 °C.
  • Availability example: 7 days (subject to supplier availability).
