NdFeB magnet 41-90 series

neodymium-iron-boronrectangularplastic-coated

Presentation

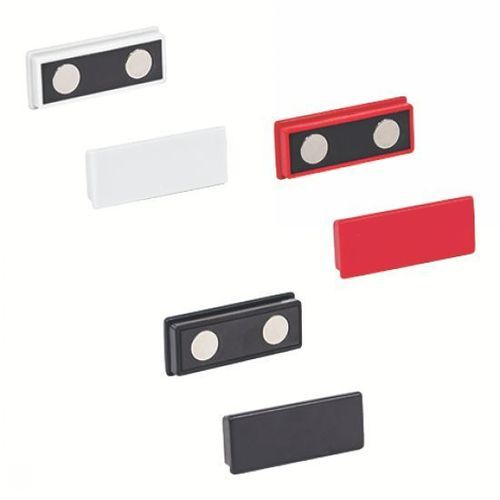

Rectangular flat magnet with a plastic body available in several colors. Listed as a new product on the product page.

MATERIAL

• Plastic body: white (RAL 9003) or grey (RAL 7040) or red (RAL 3031) or black (RAL 9004)
• Magnet: neodymium-iron-boron (NdFeB)

USE
Maximum operating temperature: 80 °C.

ON REQUEST

• Customization of the plastic face

Variants / References

• Ref 41-900-55 — Color: White — l1 = 55 mm, l2 = 22.5 mm, h1 = 8.5 mm, h2 = 2 mm — Force: 48 N — Availability: 7 days — Price: NC
• Ref 41-902-55 — Color: Grey — l1 = 55 mm, l2 = 22.5 mm, h1 = 8.5 mm, h2 = 2 mm — Force: 48 N — Availability: 7 days — Price: NC
• Ref 41-904-55 — Color: Red — l1 = 55 mm, l2 = 22.5 mm, h1 = 8.5 mm, h2 = 2 mm — Force: 48 N — Availability: 7 days — Price: NC
• Ref 41-906-55 — Color: Black — l1 = 55 mm, l2 = 22.5 mm, h1 = 8.5 mm, h2 = 2 mm — Force: 48 N — Availability: 7 days — Price: NC

Additional information
Order example: Reference 41-900-55.
Complies with standard GN 53.2.

Characteristics / technical specifications

• Model / series: 41-90
• Type: rectangular flat magnet, plastic body
• Body: plastic (various RAL colors available)
• Magnet: neodymium-iron-boron (NdFeB)
• Maximum use temperature: 80 °C
• Main dimensions (series example): l1 = 55 mm, l2 = 22.5 mm, h1 = 8.5 mm, h2 = 2 mm
• Typical force: 48 N
• Available references: 41-900-55, 41-902-55, 41-904-55, 41-906-55
• Customization: plastic face customizable on request
