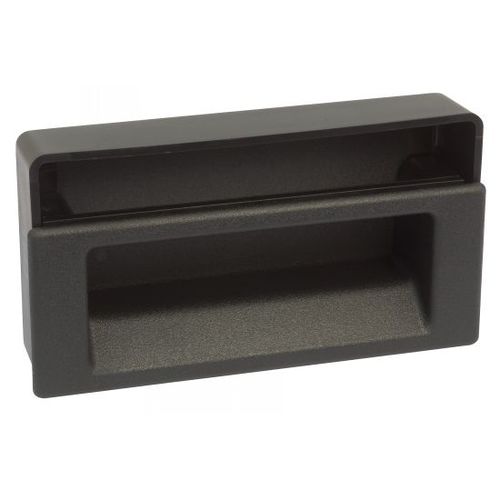

Flush handle 11-24 seriesfront panelABSscrew
Add to favorites
Compare this product
Characteristics
- Type
- flush
- Applications
- front panel
- Material
- ABS
- Other characteristics
- screw
Description
Overview
Materials
Usage
Mounting
Ordering
Documentation & CAD
Technical specifications
- Flush handle to screw, model 11-24, designed for panel mounting.
Materials
- Handle and cage: black ABS, semi-matte finish.
- Screws: bright zinc-plated steel.
Usage
- Flammability rating: UL94-HB or UL94-VO depending on variant.
- Maximum screw tightening torque: 0.5 N·m.
- Operating temperature range: -50°C to 60°C.
Mounting
- Prepare the panel cutout according to the drawing.
- Insert the flush handle into the panel with the slot facing the top of the opening.
- Fix the cage to the handle from the rear of the panel.
Ordering
- Example reference: 11-240-18.
- Available references: 11-240-18; 11-240-33; 11-240-48; 11-240-63; 11-245-18; 11-245-33.
Documentation & CAD
- Product sheet (PDF) available.
- CAD files available for each reference.
Technical specifications
- Model: 11-24; Series: 11.
- Materials: handle and cage in black ABS (semi-matte); screws in bright zinc-plated steel.
- Flammability: UL94-HB or UL94-VO depending on variant.
- Maximum screw tightening torque: 0.5 N·m.
- Operating temperature: -50°C to 60°C.
- Mounting: panel-mounted; cage fixed from panel rear.
- Example order reference: 11-240-18.
- Available references and CAD files per variant.
