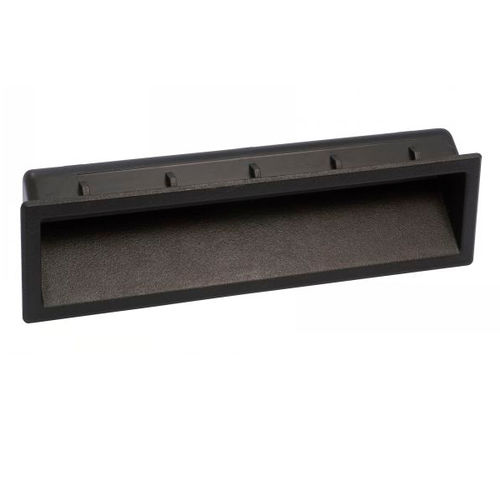

Flush handle 11-22 series

recessedfront panelABS

Product name / Series
Flush handle to clip — Series 11 (Model 11-22).

Commercial designation
Flush handle to clip (recessed / flush-mounted handle).

Material
ABS, black, semi-matt finish.

Use / Operating conditions

• Flammability index: UL94-HB or UL94-VO (depending on reference).
• Temperature range: -50°C to +60°C.

Mounting instructions

• Prepare the panel cut-out as illustrated.
• Engage the upper edge of the opening under the top part of the flush handle.
• Snap the lower part into place by a rocking motion.

Ordering / Variants
Example of order: Reference-l2 11-220-14-82.
Available references / variants:

• 11-220-14-82
• 11-220-14-127
• 11-220-18-82
• 11-220-18-127
• 11-220-21-82
• 11-220-21-127
• 11-220-25-82
• 11-220-25-127
• 11-225-14-82
• 11-225-14-127
• 11-225-18-82
• 11-225-18-127
• 11-225-21-82
• 11-225-21-127
• 11-225-25-82
• 11-225-25-127

Notes on availability & price

• Availability flags shown per reference (examples: D = in stock; some items: 6 to 8 days).
• Price information marked as NC (not communicated) on the product table.

Files / Documentation
Technical datasheet and product PDF are available for download (product-specific PDF present).

Technical specifications

• Material: ABS (black, semi-matt).
• Flammability: UL94-HB or UL94-VO available by reference.
• Operating temperature: from -50°C to +60°C.
• Possible L2 sizes (panel thickness / internal dimension option): 82 mm or 127 mm (depending on reference).
• Typical dimensional data indicated on product table: l1 options ~1.0 / 1.4 / 1.8 / 2.1 mm; l2 options 82 or 127 mm; l3 = 35.8 mm; l4 = 25.5 mm; l5 = 5 mm; l6 = 17 mm; l7 = 1.8 mm; h1 = 40 mm; r1 = 1 mm; r2 (max) = 1.5 mm.
• Mechanical performance indicators (examples from technical table): F1 ≈ 1800 N, F2 ≈ 450 N (values shown per reference).
• Mounting principle: clip / snap-in installation into prepared panel cut-out.
