Fuel monitoring system Emilprobe®

temperaturelevelfor storage tanks

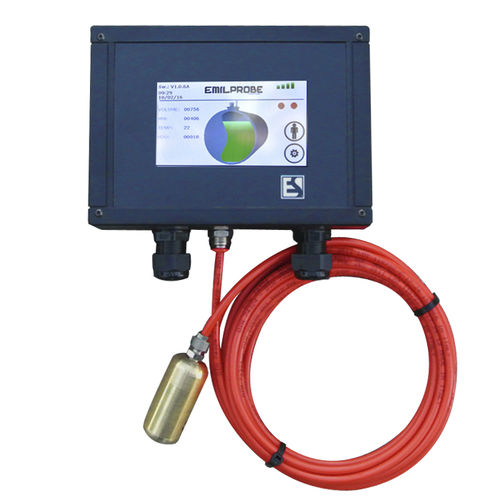

Emilprobe® is a probe, which performs real-time monitoring of the liquid inside the storage tanks for private or commercial use. Emilprobe can be controlled locally by means of a touchscreen electronic unit as well as remotely by means of a smartphone. Above all, Emilprobe is equipped with an innovative alarm system, which detects abnormalities in the fuel values and sends immediately an SMS-message and an e-mail to 5 different cell phone numbers and 5 e-mail addresses. In this manner, the owner of the tank is updated immediately in case of an unexpected level drop that may be a theft. And when occurs the level drop the pump is blocked and it is not possible to refuel. The Emilprobe® system software constantly monitors in text and graphic form, the actual volume and the level in millimeters of liquid in the tank; furthermore, if coupled with an ES-level or ES- LEVEL DIGIMAG probe, the system may also monitor the temperature in degrees and the presence of water in millimeters. Emilprobe® can manage up to 120 users. Technical features: • - IP55 Box Dimensions: 19 x 13.5 x 8 cm (L x H x W). • - Color display 4.3 “WQVGA-resolution (480x272) touchscreen. • - RS485 opto-isolated interface for connection to the probe ESLEVEL / OCIO. • - GSM / GPRS / GPS Simcom 908/928. • - 2 dry contact relay. • - Supply: 230V / 50Hz. • - 100 records (Logfile) of latest operations / modifications to the software. • - 4 AA rechargeable batteries. • - Input Mass Storage USB to upload Tank Calibration Table / save operations / Insert company’s Logo. Only for the version with Level Inspector: • - Liquid level control system Resolution 1 cm. • - Terminal heater.
